Arcam AVR5 is a high-performance AV receiver that delivers stunning realism for the ultimate home cinema experience. With native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences
Stunning Realism The AVR5 makes Arcam's class-leading product designs accessible to a much broader audience. For over 25 years, their award winning home cinema products have built a reputation based on incredible amplifier topology. The AVR5 continues that trend of delivering stunning realism and a great home cinema experience.

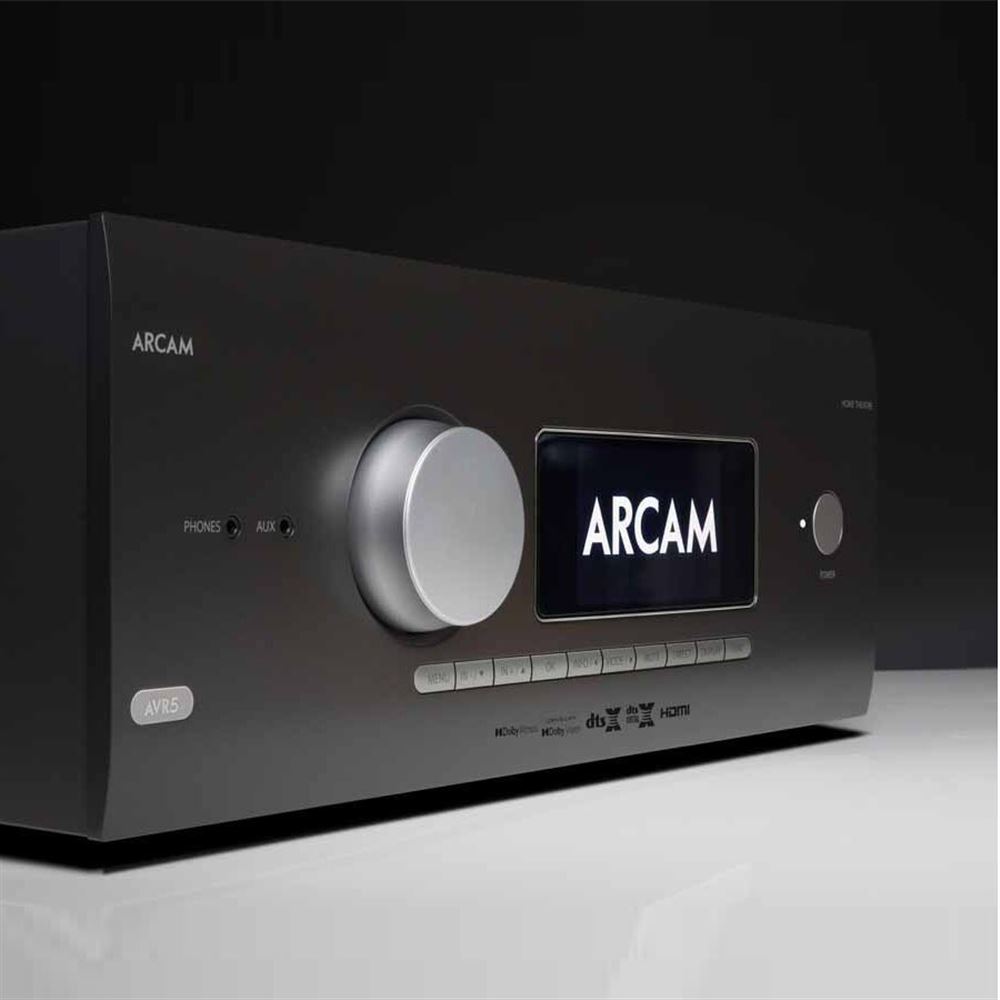

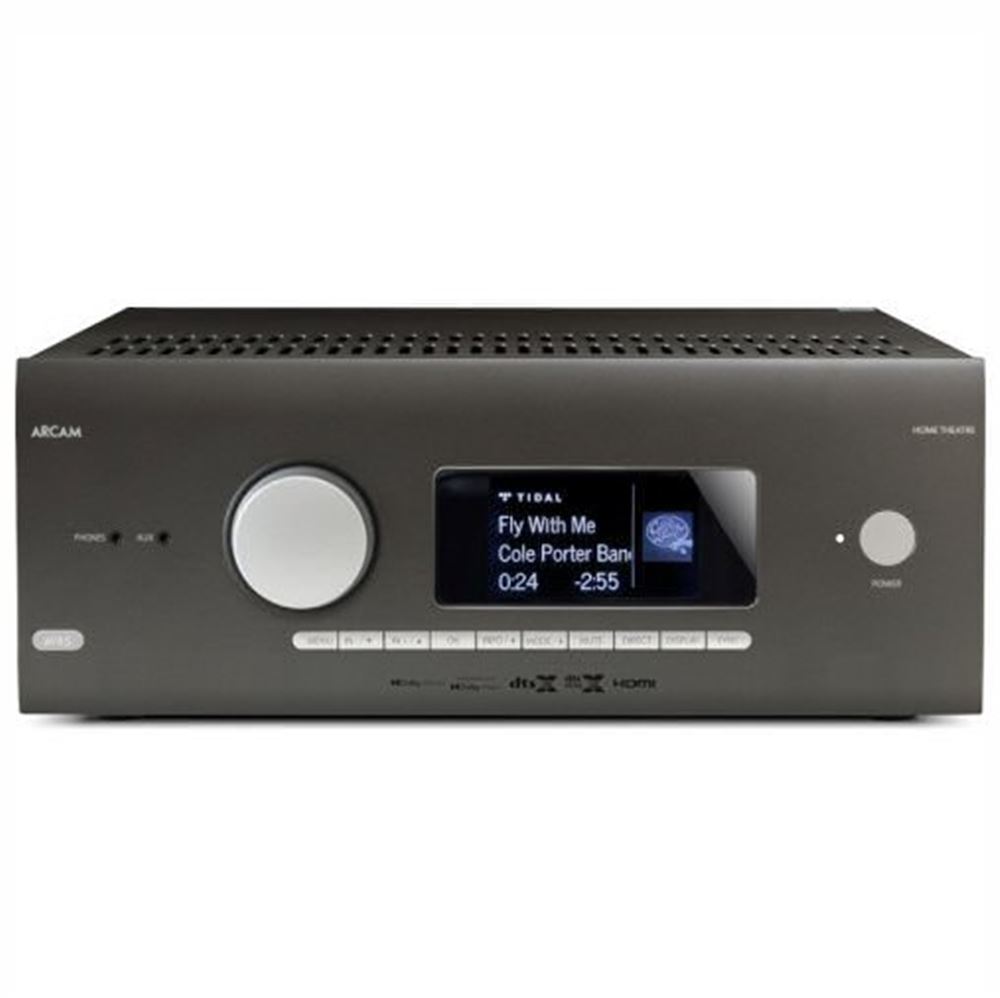

Feature Set The AVR5 offers a comprehensive and configurable feature set. The AVR5 has the same elegant exterior casework as its siblings complete with 4.3” colour TFT screen. AVR5 hosts 7 channels of Class AB amplification and a pair of ESS 9026PRO DACs as used in the flagship AVR30 receiver.

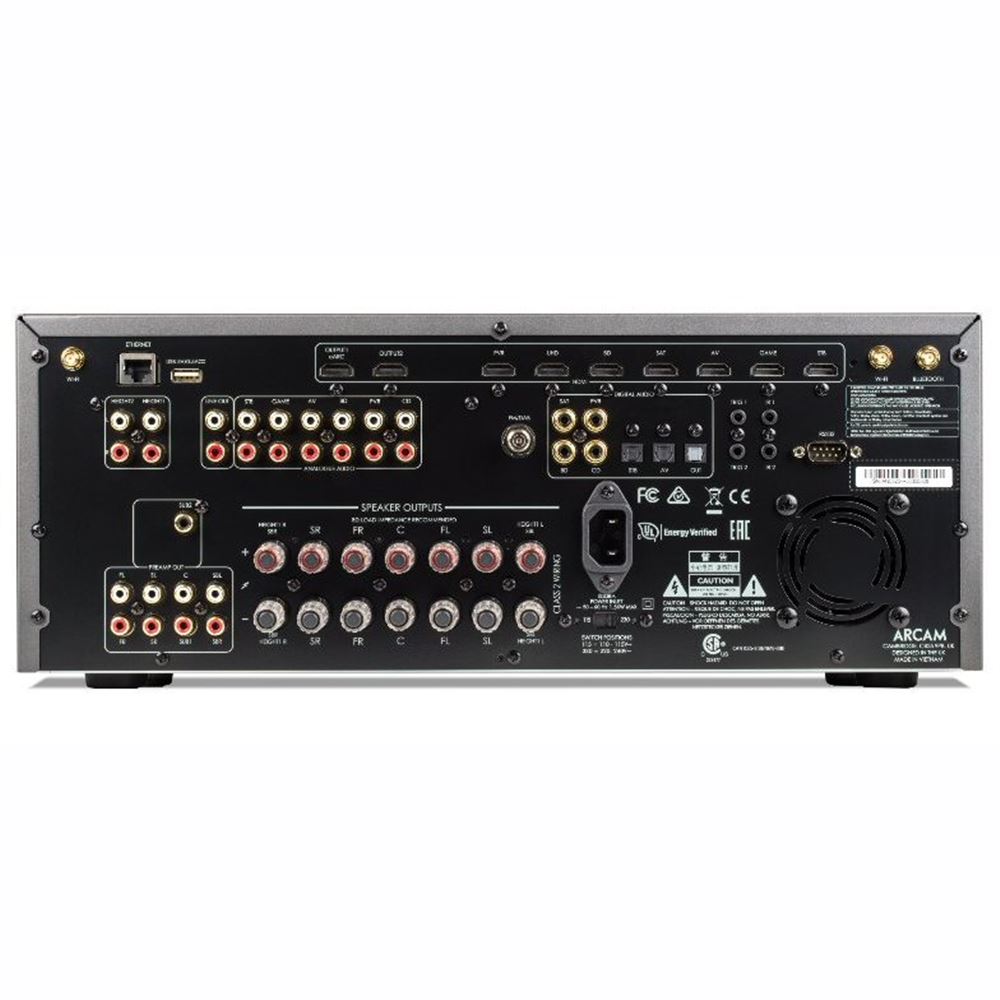

HDMI In/Out The AVR5 has 7x HDMI inputs and 2x HDMI outputs each being able to deal with 4K (UHD) HDMI2.0b and HDCP2.2 content. Please be aware that will be an optional upgrade for the AVR5 to 8K pass-through, this will occur when the HDMI 8K board is available.
Stream from smartphone AVR5 users will be able to stream from tablets and smartphones by using streaming services such as Spotify Connect, Google Chromecast (built-in), Bluetooth aptX HD and Apple AirPlay2. The recently updated Music Life UPnP app enables playback and control of the AVR5 on iOS and Android, additionally, it facilitates music streaming, internet radio and podcast listening.
MQA The new AVR5 also supports MQA allowing TIDAL HiFi subscribers to experience the highest available audio quality from TIDAL Master recordings. It’s Roon Ready status enables Roon members to use the system's acclaimed interface when surfing Qobuz, TIDAL, and locally stored music libraries. The AVR5 can also form part of a multi-room system that is driven by Roon.
Additional Features The Arcam AVR5 also features, Dolby Atmos with DTS:X 7.1.4 decoding, 4K (UHD) HDMI2.0b with HDCP2.2, is eARC compatible and has 2 HDMI outputs and 7 HDMI inputs. The system is can also be used with Dirac Live room correction.
Specifications
Continuous power output, per channel, 8Ω/4Ω
- 2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
- 2 channels driven, 1kHz, 0.2% THD 85W/120W
- 7 channels driven, 1kHz, 0.2% THD 60W/85W
- Residual noise & hum (A-wtd) <0.15mV
Stereo Line Inputs
- Maximum input 4.5V rms
- Nominal sensitivity 1V, 2V, 4V (user adjustable)
- Input impedance 47k?
- SNR (A-wtd ref 100W): normal/stereo direct 100dB/110dB
- Frequency response: 20Hz—20kHz, ±0.2dB
Preamplifier Outputs
- Nominal output level 1V RMS (max. 5V RMS)
- Output impedance 560?
- THD+N (20Hz—20kHz) –100dB
Headphone Output
- Maximum output level into 32? 5Vrms
- Output impedance <100?
General
- Mains voltage 110–120V or 220–240V, 50–60Hz
- Power (max/typical/standby): 1.5kW/90W/<0.5W
- Dimensions (WDH): 433 x 425 x 171mm
- Weight: 16.5kg
