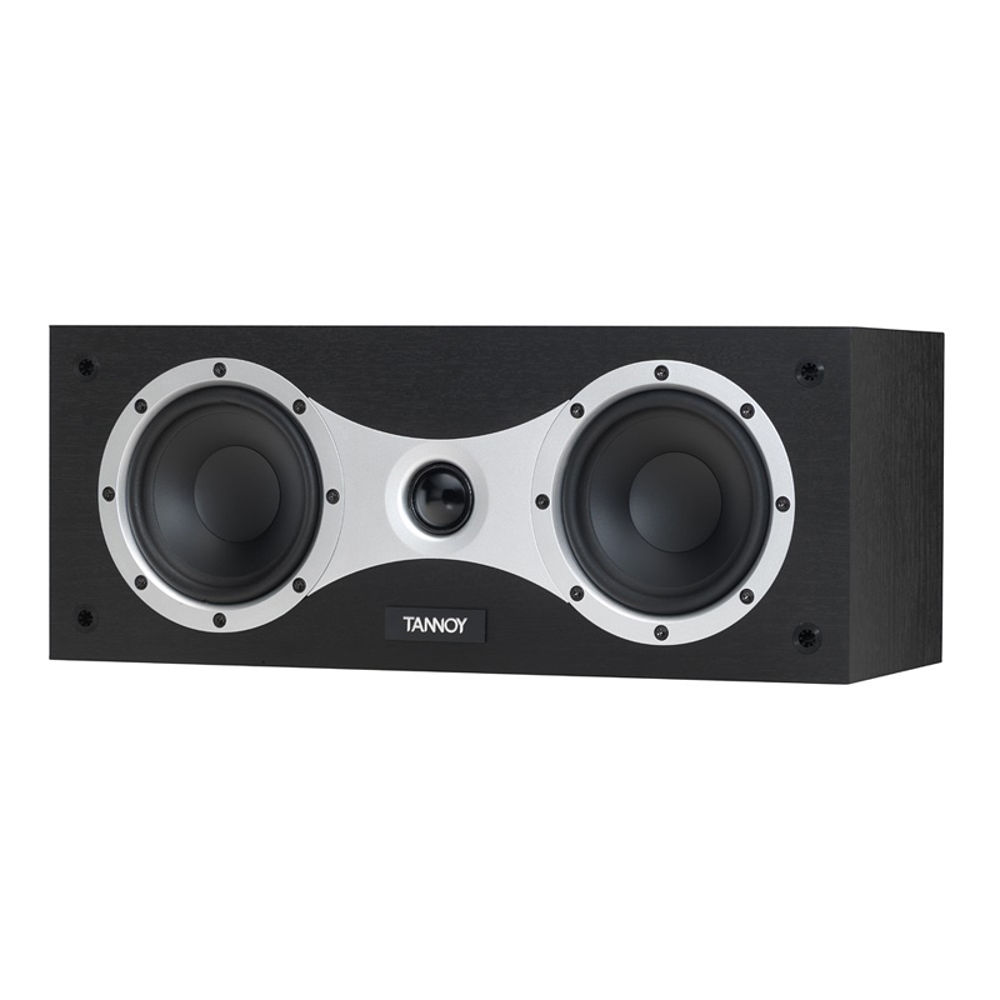

Tannoy Eclipse Centre Speaker

With twin 100 mm (4 inch) multi-fibre coated pulp paper cone drivers and a 28 mm (1.1 inch) polyester-dome HF, the Eclipse Centre is voice matched acoustically to the rest of the Eclipse range, providing crystal clear dialogue for home theatre systems.

PERFORMANCE
Recommended amplifier power (Watts RMS) 15 - 90
Continuous power handling (Watts RMS) 45
Peak power handling (Watts) 180
Sensitivity (2.83 Volts @ 1m) 90 dB
Nominal Impedance (Ohms) 8
Frequency response (-6 dB) 67 Hz – 32 kHz
DRIVE UNITS
High frequency 28 mm (1.1”) Nitro-urethane damped layer woven polyester dome, neodymium magnet system
Low frequency 2 x 100 mm (4”) Multi- fibre coated pulp paper cone
CROSSOVER
Crossover Frequency 2.4 kHz
Crossover Type Passive low loss 2nd order low pass, 3rd order high pass
CONSTRUCTION
Enclosure type Rear ported reflex
Volume 5.6 Litres (0.2 cu. ft)
Dimensions (H x W x D) (inc plinth) 157.0 x 400 x 160 mm
(6.2 x 15.8 x 6.3”)
Net weight 3.6 kg (7.9 lbs)
Finish Black Oak
