Ruark R610 75w Streaming System with Sabre-R Bookshelf Speakers
The Ruark R610 streaming amplifier provides all the connectivity you are ever likely to need, and with a powerful processor it is capable of handling the highest quality audio streams. With Internet Radio, Spotify Connect, Tidal Connect, Apple AirPlay and Google Cast all built in, a vast selection of music awaits to be discovered.
The Ruark R610 also makes it easy to rediscover treasured physical music formats. A quality phono stage makes it simple to connect a turntable, while for CD playback we will soon be unveiling our own Compact Disc Player called R-CD100. This will integrate and connect with R610 and our other 100 Series models via the USB socket on the rear. Last but not least, R610’s HDMI ARC/eARC connection provides a great sound solution for those seeking a system that also elevates TV and film enjoyment to a new level.

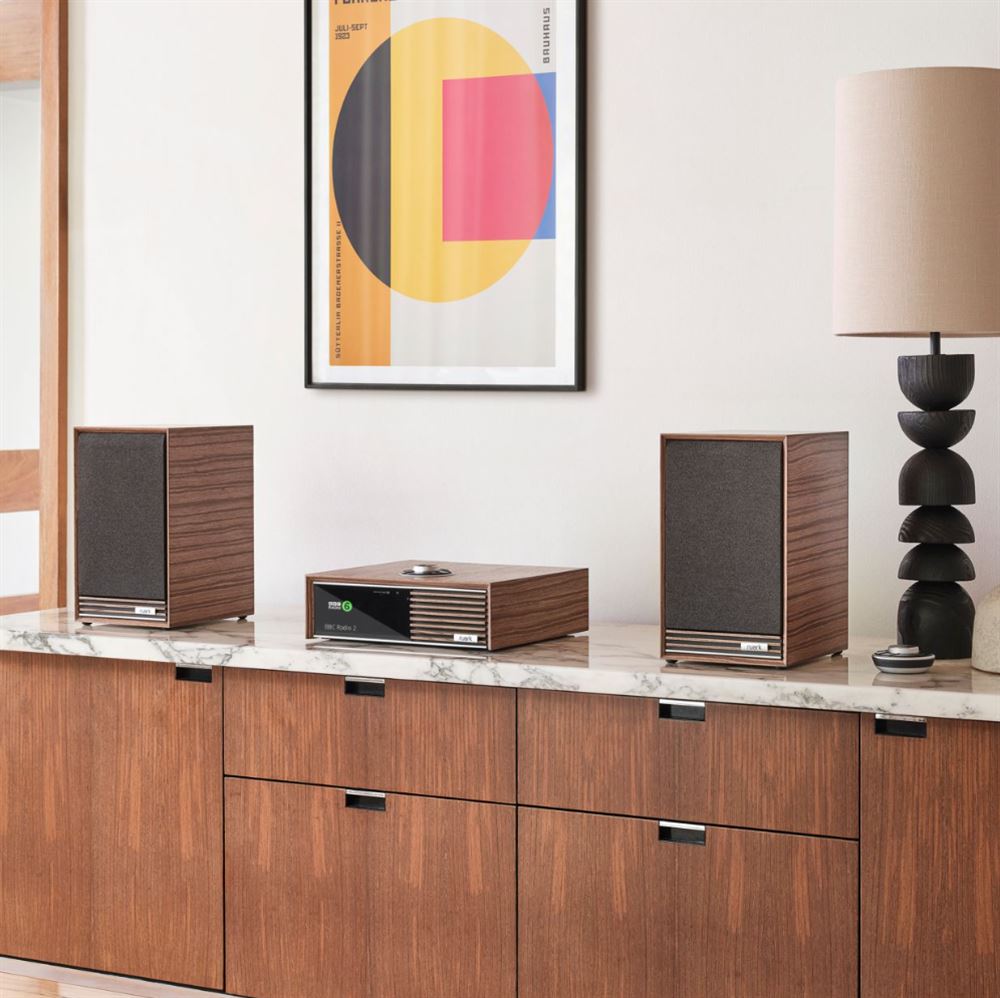

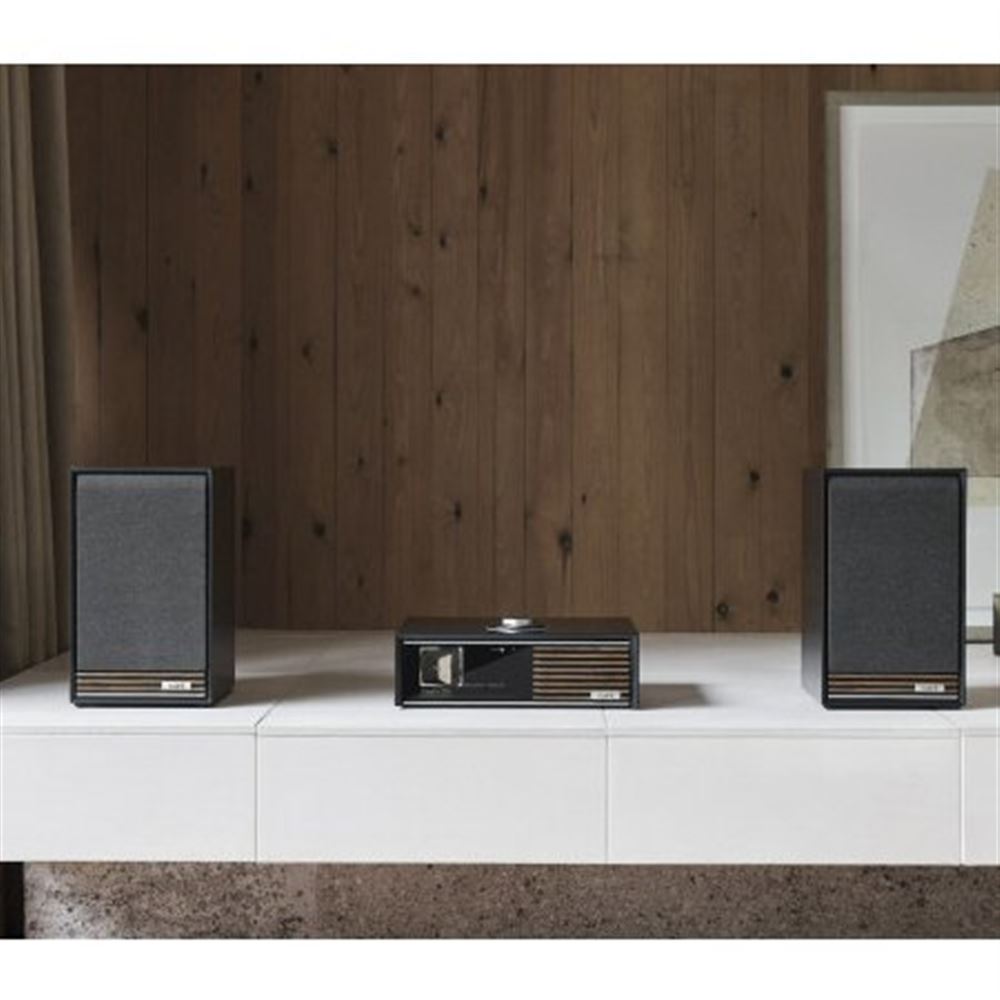

Ruark Sabre-R + R610 | Perfect Partners
On their own, Sabre-Rs are a tempting proposition for customers seeking high performance speakers for their existing hi-fi separates, but for customers seeking a complete musical solution, Sabre-R and R610 together create a formidable package. Whatever your taste, Sabre-R and R610 creates a magical combination, which will have you discovering again the delight that music and sound can bring.
Specifications

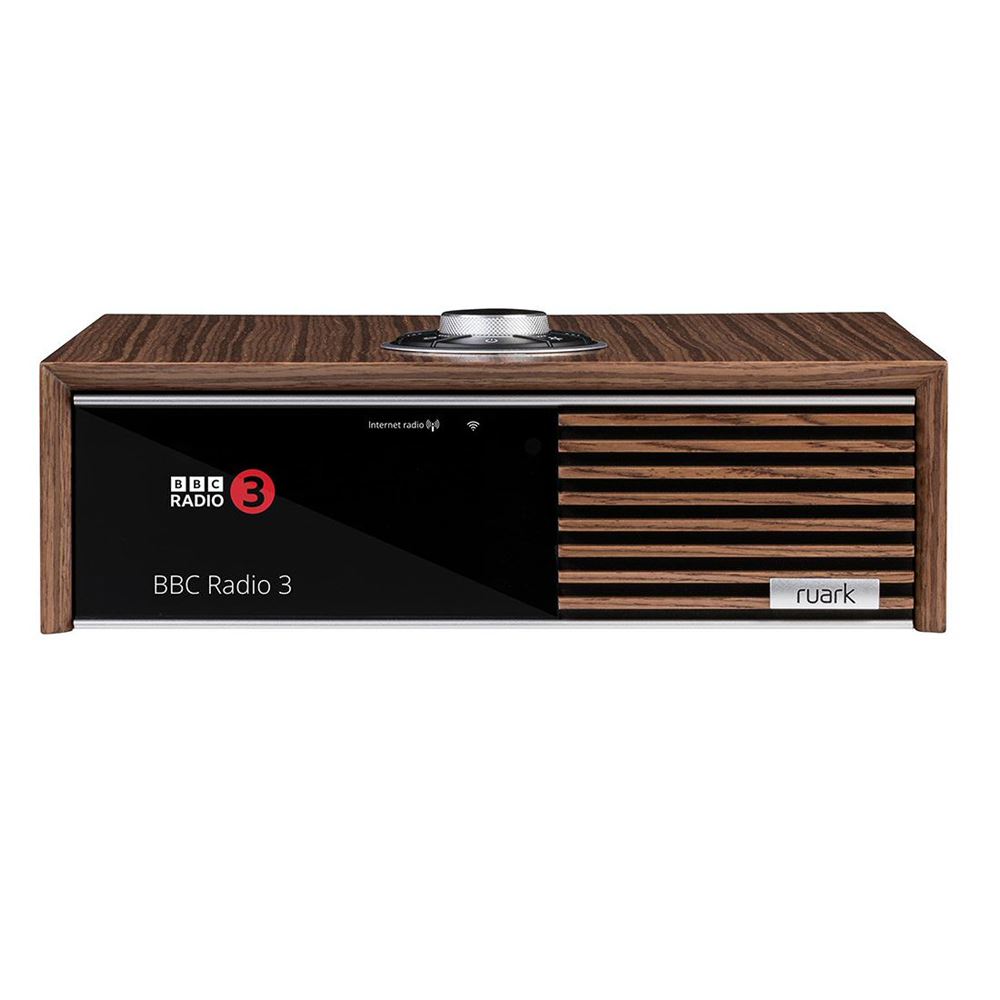

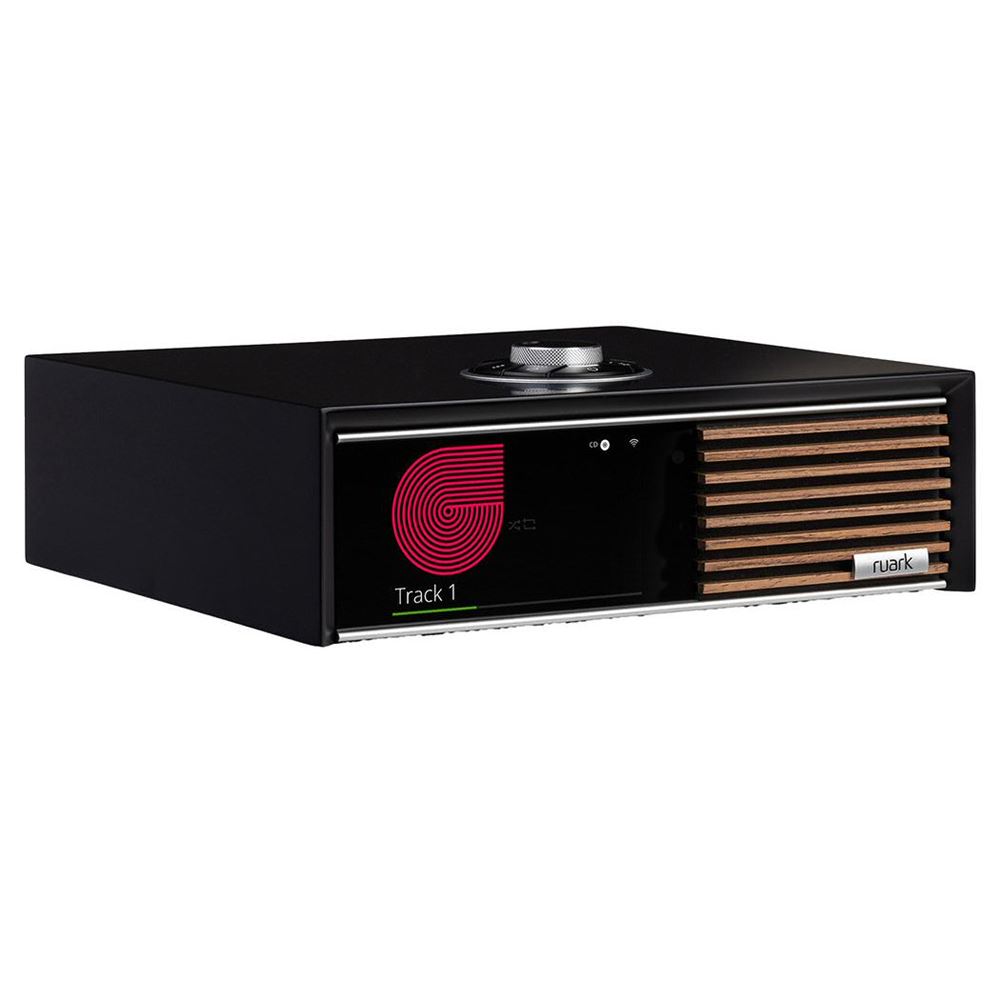

Ruark R-610 Music Console...
Amplifier: 2 × 75W per channel Class-D
Frequency response: 22Hz-22kHz +0/-3dB
Enhancements: Stereo+, bass, treble, loudness
DAC: Up to 32-bit/384kHz resolution
Features
Display: Hi-contrast 5" colour TFT
Auto-Standby: Automatic power saving mode
Adjustable input levels: Line-in, phono-in, optical and HDMI
USB Charge Port: USB-C 5V 1A (5W)
Software Updates: Over-the-air and USB
Controller: Ruark RotoDial control system
Remote control: Ruark RotoDial Bluetooth rechargeable remote
Presets: 20 global presets
App control: Via Spotify, BBC Sounds and more
User interface languages: Multilingual
Connectivity
Radio: Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
Multiroom capable: Via Apple AirPlay and Google Cast
Wi-Fi: 802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Streaming: Apple AirPlay and Google Cast
Built-in music services: Spotify Connect and TIDAL Connect
Supported music services: Amazon Music, BBC Sounds, Deezer, Qobuz and more
Bluetooth: 5.1, aptX HD, SBC, AAC, BLE, A2DP
Ethernet: RJ45 connector 10/100 Mbps
DLNA: UPnP™ DLNA media server compatible
CD support: CD playback via external USB CD drive (optional)
HDMI: ARC and eARC
Line-input: Stereo RCA input (up to 2.3Vrms)
Turntable input: Stereo RCA input with RIAA MM phono gain stage (up to 8mV)
Line-output: Selectable Line-out/Pre-out, via stereo RCA connectors
Subwoofer-output: Volume related full-frequency mono RCA connector
Optical input: TOSLINK digital input up to 24-bit 192kHz
USB-C: playback port
Aerial connector :75? F-type
Supported Audio Formats
FLAC, AIFF, ALAC and WAV: up to 32-bit 384kHz
MP3: up to 48kHz 320kbps
AAC/AAC-LC/HE-AAC/HE-AAC v2: up to 96kHz 320kbps
General Specifications
Standard finishes: Fused Walnut veneer or Satin Charcoal lacquer
Product dimensions:
H95 × W300 × D280mm (cabinet)
H107 × W300 × D280mm (with Rotodial controls)
Product weight: 4.1kg
Product power input: 90-240VAC, 50-60Hz, 2.5A
Power consumption: 2.0W network standby, 8.0W idle
Gift Box Content:
R610 Music Console,
3m speaker cables,
rechargeable Bluetooth RotoDial remote with charge cable,
telescopic aerial,
aerial spanner,
mains power lead,
user guide

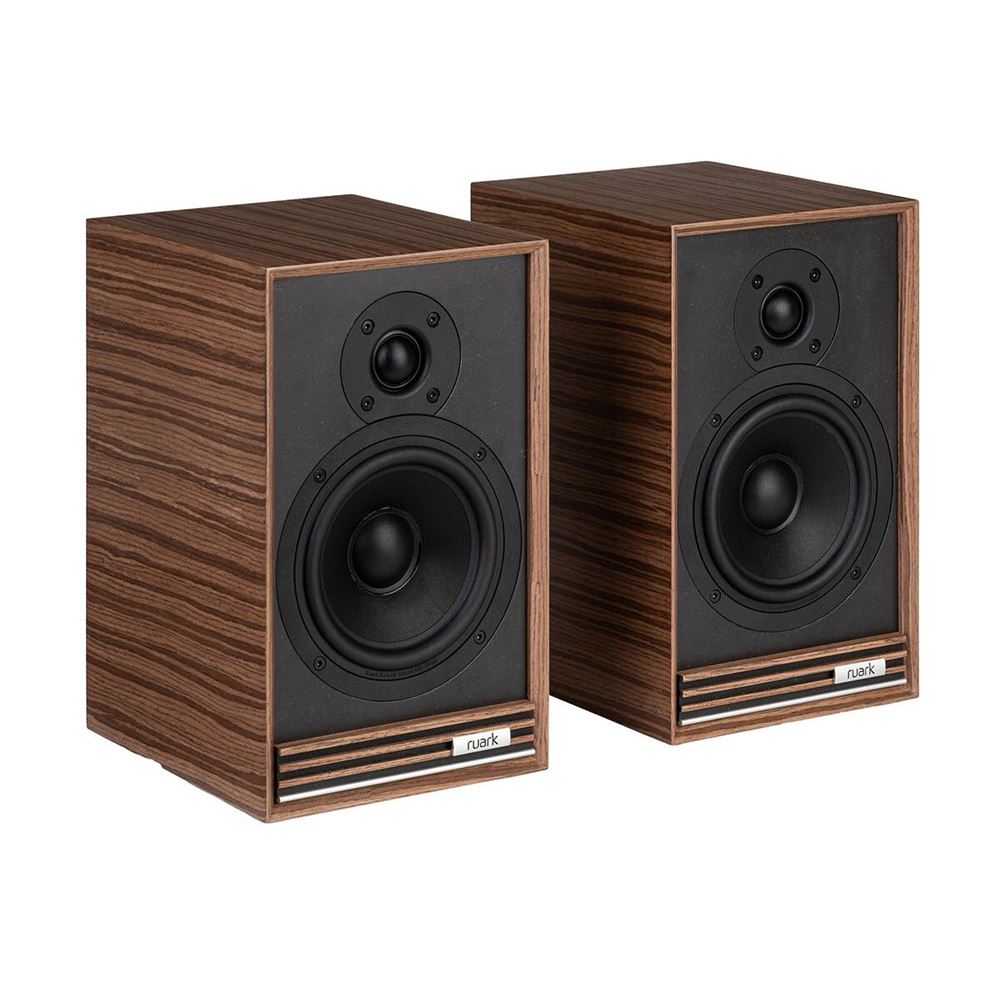

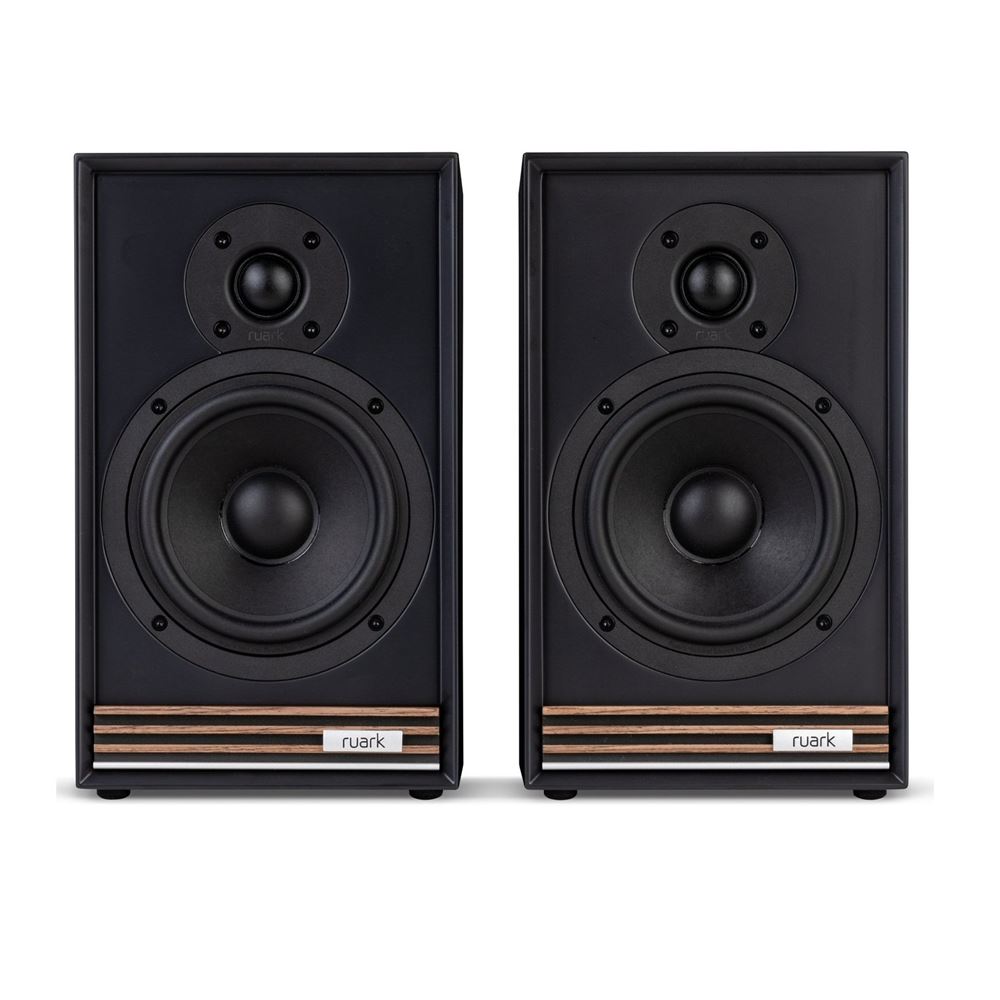

Ruark Sabre-R Speakers...
Cabinet Damped and braced, wood composite construction
Design 2-way bass reflex. Double flared port tuned to 55Hz
Woofer Ruark 15cm treated natural fibre cone, 30mm 4-layer voice coil, long-throw motor with precision cast chassis
Tweeter Ruark 26mm silk dome, neodymium motor system with aluminium heatsink
Nominal impedance 6 Ohm (min 4.2 Ohm)
Frequency response 50Hz – 20KHz +/- 3dB (free space conditions)
Sensitivity 86dB/W/m
Crossover frequency 2.2kHz
Recommended amplifier 25-100W
Input connectors Two sets of 4mm gold plated binding posts for single or bi-wire connection
Grille Removable magnetic frame with acoustically transparent cloth
Placement Stand or bookshelf
Cabinet Dimensions H290 × W175 × D215mm (D245mm inc. connectors)
Finishes Fused Walnut veneer or Satin Charcoal lacquer
Weight 5.0kg each
