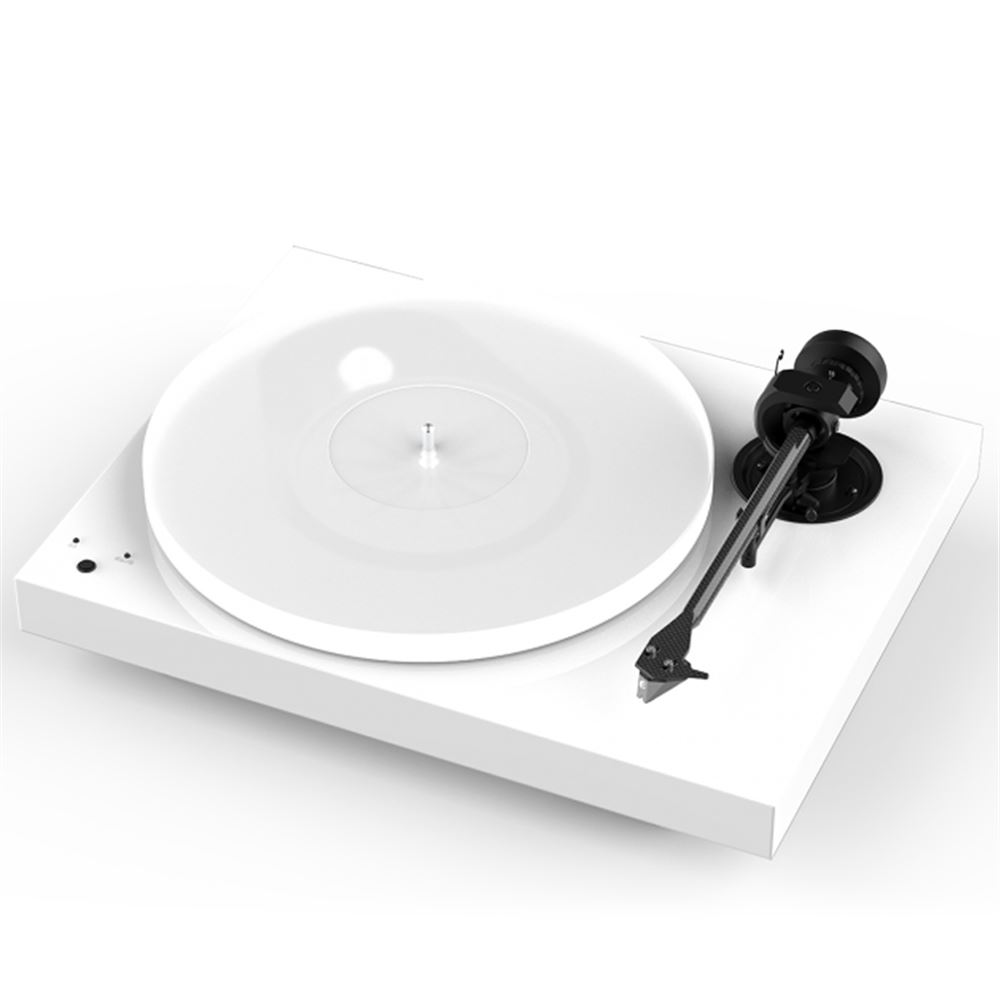

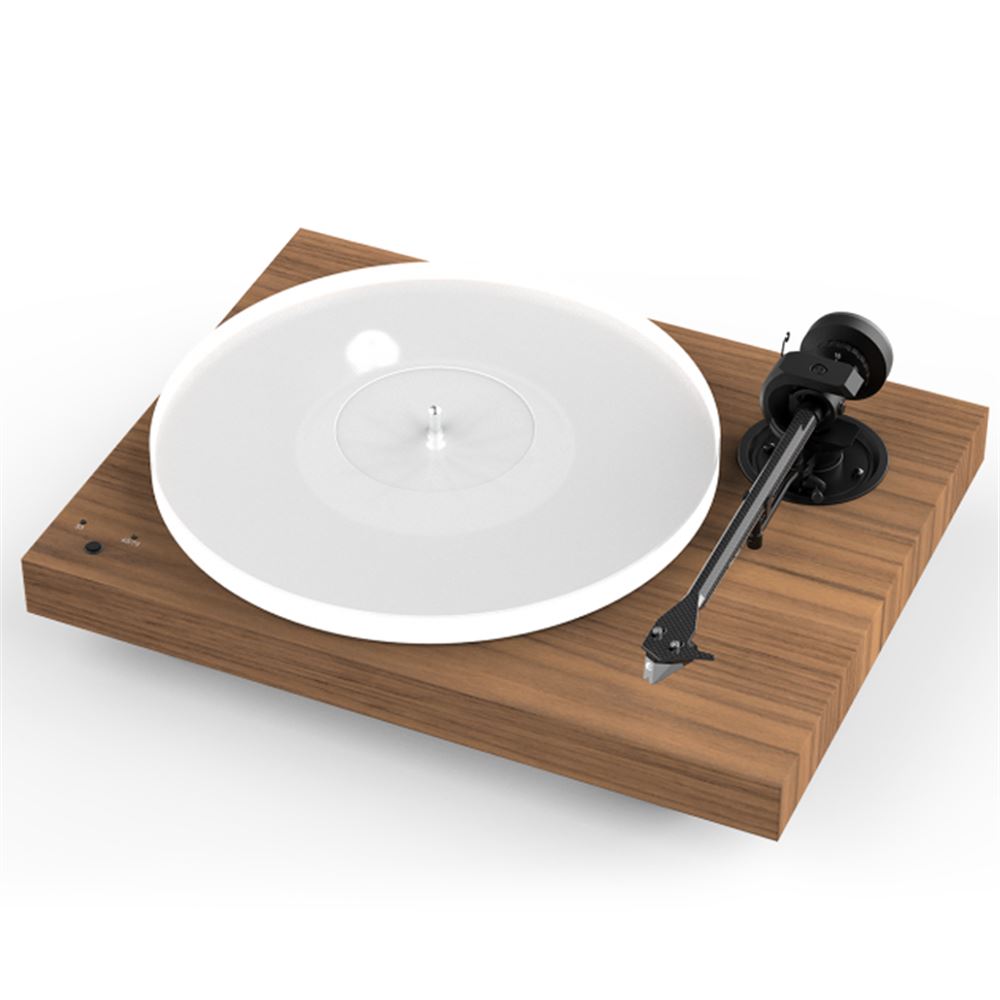

Project X1 Turntable with Project Pick it S2 MM cartridge & Hinged Perspex Dust Cover

Structurally, the X1 is framed by its new large, heavier, dense MDF structure, far out-performing the cheaper, particle board or plastic chassis alternatives. Inside, it houses a sophisticated DC/AC generator board which, combined with the convenient speed control board, delivers clean and stable power to the quiet-running motor. For even further improved performance, the motor is decoupled from the main plinth using a new motor suspension system.

In the X1, the motor drives a new, heavy, non-resonant Acryl platter via a sub-platter drive system and a premium grade main bearing for liquid smooth rotation. This is the perfect platform on which to place your precious vinyl records, guaranteeing absolute reliability in its performance and sonic character.

The X1 is also better than its predecessors thanks to the super-stiff, perfectly tempered Carbon/Alu sandwich construction tonearm, inspired by our superior The Classic turntable. This new 8.6” tonearm design is incredibly light and stiff, with improved resistance to external interference. Finished as a one-piece, with no resonance-inducing headshell, the X1 can also be set for azimuth and VTA adjustment, for fine tuning by more advanced analogue audiophiles. The tonearm is then supplied with a TPE-damped counterweight, further reducing cartridge-tonearm resonances.

The X1 truly represents the epitome of Project’s core philosophies. Due to our extensive experience and meticulous manufacturing processes, we put resources, time and effort into giving music lovers the best sound for their money, rather than cutting corners to save on costs. From our sophisticated motor drive system on to the optional specially selected cartridge, the audiophile tonearm set-up features, the purpose-designed feet, the hand-cut acrylic platter and beyond, X1 delivers a luxury level of audio and technical excellence that belies the mid-level price tag.

Say goodbye to unnecessary features, and hello to quality audio once again, with Project X1.

Key Features:

• Speed control with electronic speed switch for ultimate speed stability
• Carefully isolated motor for less vibration and noise
• Sub-platter with extremely low 0.001mm bearing tolerances
• Stainless steel platter-bearing with soft brass bushing and teflon mirrors for lowest rumble and noise, and a stable, accurate speed transmission
• Resonance free, 1.5 kg heavy acrylic platter
• 8,6” carbon/aluminium sandwich tonearm with best internal damping and TPE damped counterweight
• Kardan ultra-low friction 4 pin point precision tonearm bearing

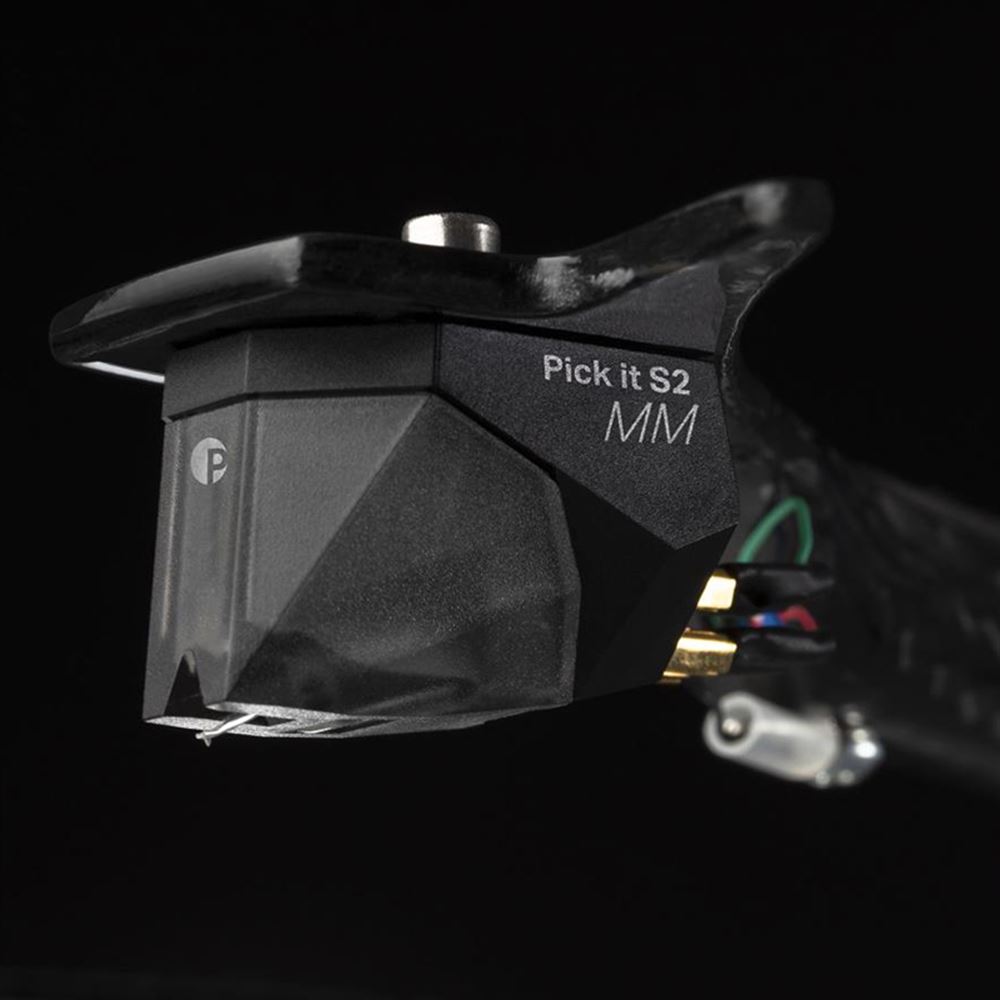

• Project Pick it S2 MM cartridge - newly developed with Ortofon for highly dynamic and full sound
• Massive and heavy, precision CNC‘d MDF chassis
• Super shielded, semi-symmetrical, low-capacitance phono cables - purpose designed by Project
• Height adjustable, aluminium feet for massively reduced risk of acoustical feedback
• Handmade in Europe

Specifications

Speed: 33, 45, 78 (electronic speed change)

Principle: Belt drive

Speed Variance: 33: 0.30%

45: 0.25%

Wow & Flutter: 33: 0.15%

45: 0.13%

Platter: 20mm thick, 1.5kg heavy acryl

Main Bearing: Stainless steel/brass

Tonearm: 8.6" carbon/aluminium sandwich

Effective arm length: 218.5mm

Overhang: 18mm

Effective tonearm mass: 10.0g

Tracking force range: 0 - 30mN (S2MM 18mN recommended)

Included Accessories: 15V DC/0.8A power supply

Dust Cover

Connect-IT E Phono Cable

Feltmat

Power consumption: 5.0W max / 0.3W standby

Dimensions (W x H x D): 415 x 125 x 335mm

Weight: 7kg net/9.5kg gross weight
