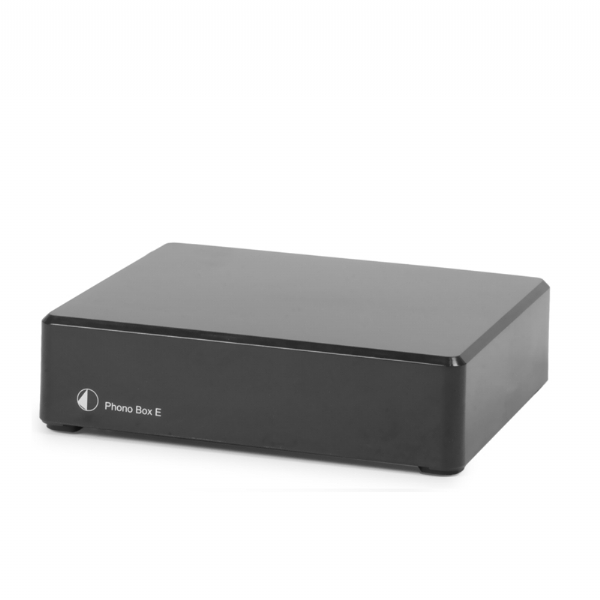

Pro-Ject Phono Box E Turntable PreAmp inc. Cables

Swipe To Cycle Images

The ProJect Phono Box E is a sturdy and modern-feeling introductory MM phono stage. We are also including a quality RCA cable to connect to your system (not normally included).

Designed specifically to amplify your moving magnet cartridge output to line level. The form factor of the unit is small and subtle, so it can be placed near the turntable/amp without being intrusive.

Key Features:

Amplification and RIAA equalisation for MM cartridges
Design principle inspired by Dr. Sykora
SMD circuitry
Special low noise components
Internal metal shielding
Small size allows installation close to record player
Gold plated RCA connection sockets
Outboard power supply included
Black casing

Technical Data:

Input Impedance:	47kO / 100pF
Input Capacitance:	120pF
Gain:	40dB
Output Voltage Typically:	500mV / 1kHz at 5mV / 1kHz
Noise Floor:	88dB - A Weighted
THD:	<0.04%
RIAA Equalisation Curve Accuracy:	20Hz - 20kHz / max. 0.5dB
Power Consumption:	20mA DC
Outboard Power Supply:	18V / 500mA DC
Dimensions (W x H x D)(w/Plugs):	120 x 32 x 100(115)mm
Weight:	250g (Without Power Supply)
