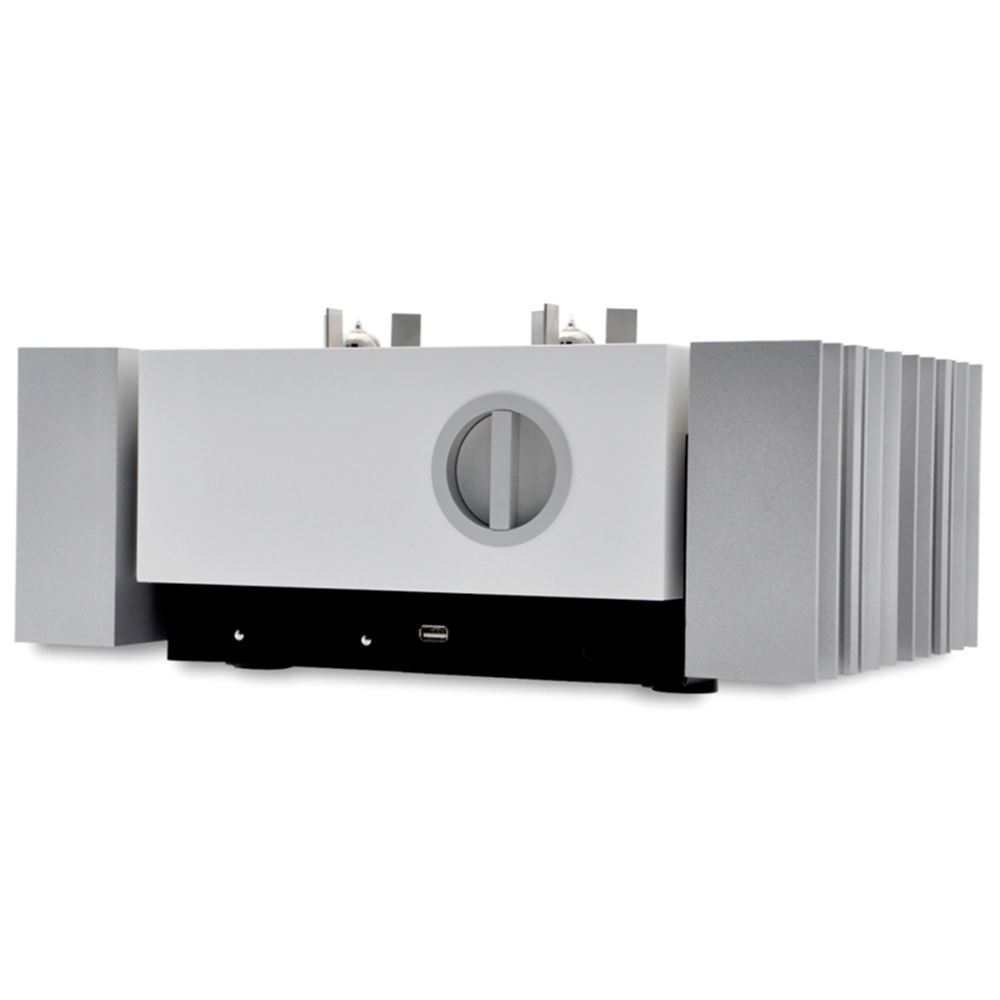

Pathos InPolRemix Mk2 Valve Amplifier. InPolRemix MKII is also available with HiDac Mk2 32bit 384KHz DAC option.
InPolRemix MkII is a fully-balanced pure Class A integrated amplifier using the latest generation double-InPol circuitry.
The digital bias/gain set technology with intelligent control is entrusted to the same microprocessor which regulates the volume, thus guaranteeing the performance of the amplifier itself and its ability to drive the loudspeakers efficiently.
Thanks to the (optional) HiDac MK2 converter, music lovers who want the best from the latest digital sources - controlled via smartphone or tablet - will find their demands fully met.
InPol (Inseguitore Pompa Lineare - Linear Pump Follower) is a system patented by Pathos Acoustics which has enjoyed great success and won many awards.
Inpol devices have a special sonic personality obtainable only by means of this particular circuit design - fully balanced in Class A using a single solid state component in follower configuration, with high current gain and with voltage gain together. The valve amplifier amplifies the input signal voltage and InPol supplies the current to drive the loudspeakers without any further amplification. In this way the signal is entrusted to the valves and becomes a true copy of the original, with all the quality, purity and harmonic content of the original.
This technology allows an increase in the theoretical output in pure Class A of between 25% and 50% together with a low output impedance which is fundamental for the damping factor, and further improved by the double InPol.
Type Stereo integrated amplifier Pure class A
- double INPOL technology - fully balanced -
digital Bias/gain set technology
Output power 2 x 25W@ 8 Ohm, 2 x 38W@ 4 Ohm
Frequency response 2Hz – 150KHz ± 0.5db
Input sensitivity 470mVRMS
Input impedance 47KOhm
Output polarity Selectable by remote control
Volume regulator 2 x Burr Brown PGA2310 (180 steps 0,5dB)
THD 0,1% @ 25W
S/N Ratio > 100dB
Gain 31 db Unbalanced 37 db Balanced
Output impedance 0,9O
CONNECTIONS
Analogue inputs 1 Balanced XRL line, 4 unbalanced RCA line
Digital inputs Installation of (optional) HiDac Mk2 board is required to enable these inputs:
1 USB port type “B”, 1 SPDIF coaxial, 1 SPDIF optical
1 Ethernet RJ45, 2 USB port type “A”
OUTPUTS
1 Pre out stereo line RCA
1 Pre out stereo line Balanced XLR
Pre-output phase can be selected
1 connector for jack headphone 6,3mm
HEADPHONE SPECIFICATIONS
Output power 2,65W @ 32 O
Output impedance 0,45O
Max output level 9,6 VRMS
Frequency response 2Hz - 400KHz ± 0,5db
THD 0,025%
DIMENSIONS
Amplifier 370mm (D) x 280mm (W) x 180mm (H)
Weight 13,5Kg
