Replacement stylus, recommended for the following cartridge models: 520 Mkll, 520, 520 P or as an upgrade for the 510 or Alpha

Technical Data:

Frequency Range:	20 - 23,000Hz
Frequency Response 20 - 20,000Hz:	+2 / -3dB
Tracking Ability at 315Hz:	Typically 70µm
Compliance, Dynamic, Lateral:	25µm
Stylus Type:	Nude Elliptical
Stylus Tip Radius r / R:	8 / 18µm
Equivalent Stylus Tip Mass:	0.3mg
Tracking Force Range:	1.25 - 1.75g (12.5 - 17.5mN)
Recommended Tracking Force:	1.5g (15mN)
Tracking Angle:	20º
Stylus Colour:	Black

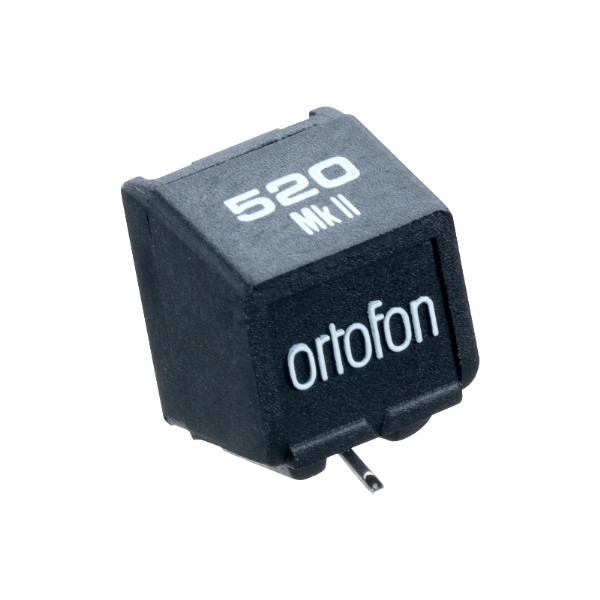

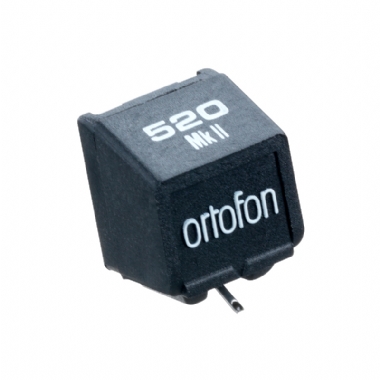

In some production runs, the Ortofon 520 stylus has been produced with a black Ortofon logo on the front. The image shown is for illustrative purposes only.
