The Monitor Audio Bronze W10 is the subwoofer in the new Monitor Audio Bronze 6th generation series. A long-throw 10"subwoofer driver combines with the 10" auxiliary bass radiator to bring a vivid realism to any performance.

They have improved the driver and bass radiator by reducing the moving masses and tuning the compliances in the system to improve the transient response - kick drum sand explosions now have much more punch and precision. Reduced moving mass and improved rubber feet allows more energy to be transmitted directly into the room rather than being lost through mechanical vibrations through the floor and walls. The performance has not been forgotten, the step up in sound is simply stunning and these new Bronze series will prove to be the entry level speaker to beat,

Features

• Uniform Dispersion (UD) Waveguide for even sound dispersion, improved time alignment, and lower crossover frequency

• High build quality with contrasting baffle, available in four contemporary finishes• Using our C-CAM drivers and signature Gold Dome Tweeter

• Matching Bronze AMS Dolby Atmos® enabled speakers up firing module that fits on top of selected models

• Monitor Audio’s brand recognition and heritage of quality products• Bronze Series is covered by their standard 5 Year Warranty

Available Now..

Specifications...

System Format Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).
18 mm M.D.F. internally braced construction

Lower Frequency Limit -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field)
Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room)

Upper Frequency Limit -6 dB @ 150 Hz

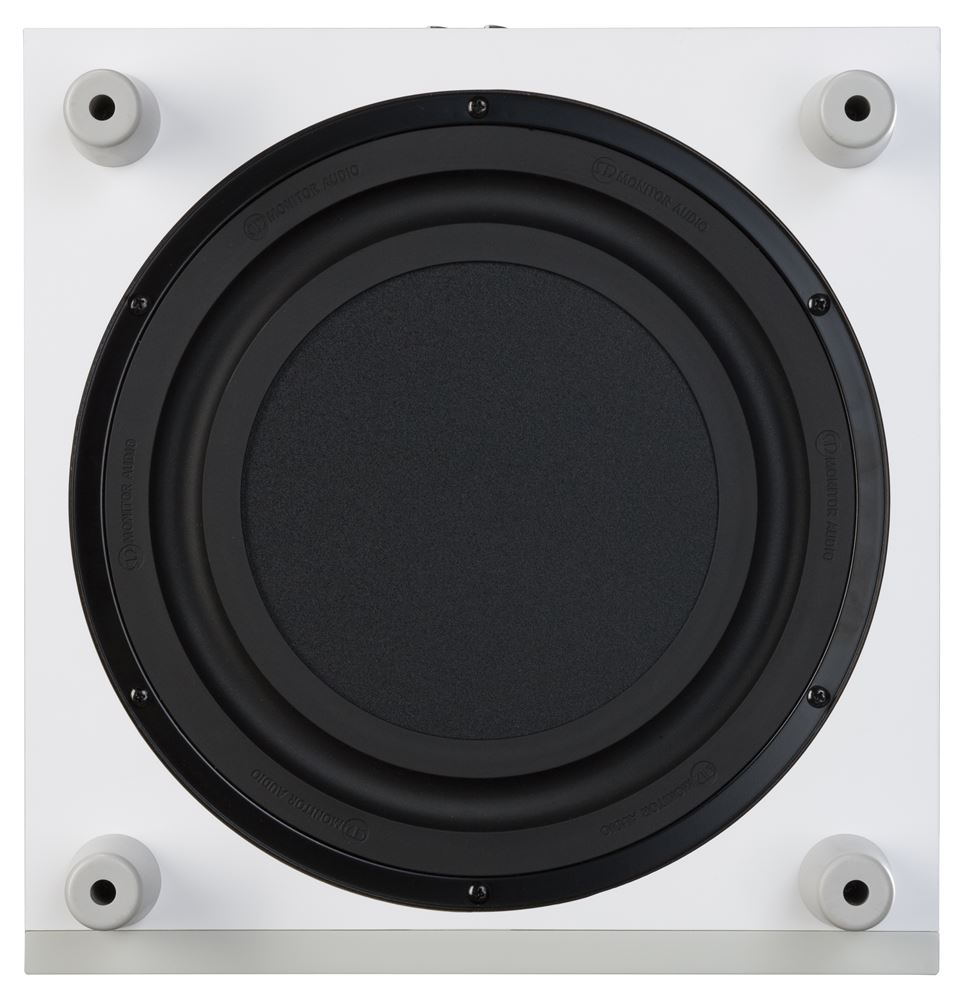

Drive Unit Complement 1 x 250 mm (10") C-CAM subwoofer driver featuring a 2" long throw voice coil

Linear Driver Excursion 17 mm peak to peak

Amplifier Output 220 W

Amplifier Classification Class D with high current Switch mode power supply (SMPSU)

Phase Control 0 Degrees & 180 Degree pure Invert

Low Pass Filter Alignment 2nd order (12 dB/Octave), from 40 Hz to 120 Hz

Equalisation DSP 3 pre-set modes: Music, Movie, Impact

Auto Sensing Line Level >3mV. Auto Standby feature after 20 mins

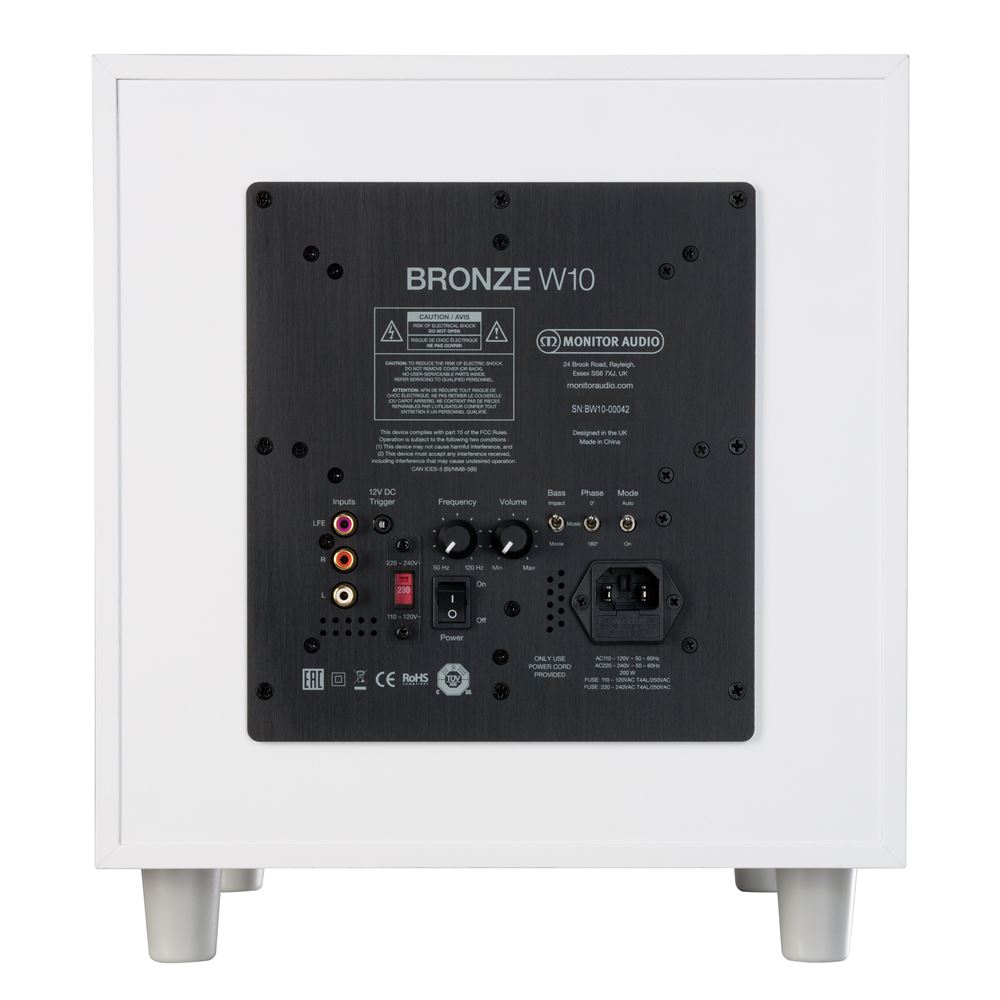

Audio Input/Outputs LFE unbalanced input RCA
Stereo unbalanced inputs RCA

Input Impedance 20 kOhms input impedance

12 V Trigger 3.5 mm mono mini-jack. 6 V threshold

Electrical Certifications CE / CB / ETL / Fcc / CCC / ErP (Energy saving compliant)

Mains Input Voltage 100 – 120 Vac 50 – 60 Hz / 220 – 240 Vac 50 – 60 Hz (Manually selected)

Power Consumption Maximum 300 W, Standby <0.5 W (ErP compliance)

Fuse Type 20 mm T4AL 250 VAC

External Dimensions (Including Amp, Drivers and Terminals (H x W x D))

321 x 321 x 364 mm (125/8 x 125/8 x 145/16")

External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))

366.5 x 321 x 364 mm (147/16 x 125/8 x 145/16")

Weight (unpacked) 13.4 kg (29 lb 9 oz)

Monitor Audio Bronze W10 Subwoofer

£580.00

Quantity

Add to basket

Delivery Standard Shipping and Click & Collect

Payment Secure payment available

System Format Long-throw 10" driver featuring ‘dished’ C-CAM cone. 10" flat panel ABR (Auxiliary Bass Radiator).18 mm M.D.F. internally braced construction

Lower Frequency Limit -3 dB @ 33 Hz / -10 dB @ 28 Hz (Free Field)Default preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room)
