Ex-Dem... Krell Vanguard SS 400w Streaming Amplifier with New... pair Sonus Faber Olympica Nova III Speakers.

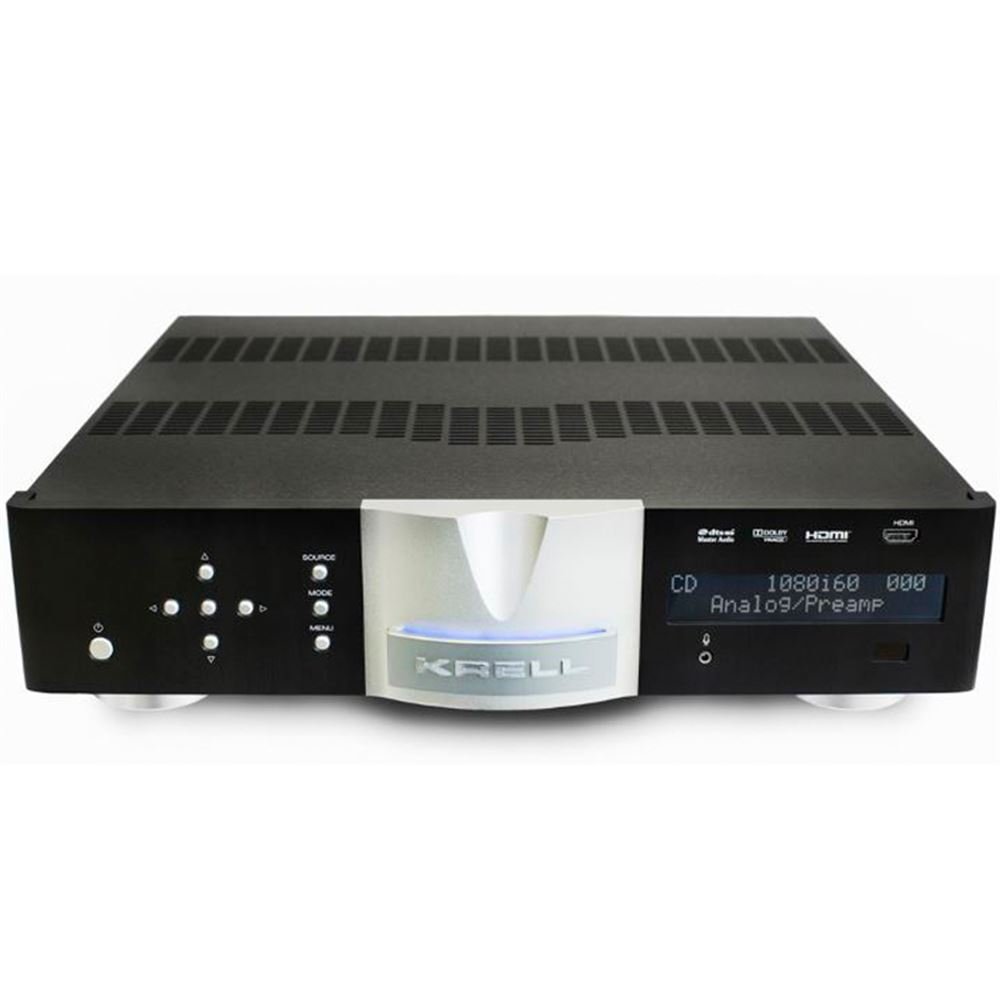

  ...Upgraded Krell Digital Vanguard SS Digital Model with USB, Ethernet Streaming and Bluetooth

This is Ex-dem in as new condition, original box etc.  NB. This model is replaced by the 300w K-300i at £12,998

The Krell Digital Vanguard’s amplifier section incorporates a massive power supply with a 750 VA toroidal transformer and 80,000 microfarads of storage capacitance. The tremendous amount of energy on tap provides 200 watts per channel into 8 ohms and 400 watts into 4 ohms. Two quiet, thermostatically controlled fans permit the use of a surprisingly compact chassis.

The preamplifier section of the Vanguard borrows its balanced, fully discrete Class A circuit concepts from Krell’s top-of-the-line Illusion preamplifiers. Krell’s Current Mode technology is employed to assure unequalled signal bandwidth, easily enough to handle the latest high-resolution PCM and DSD audio sources without impacting high-frequency response and detail.

Packed with many of Krell’s most musical-sounding technologies, the elegant chassis is living-room-friendly. Yet it has enough power to achieve incredible, lifelike dynamics with any speaker.

The front-panel menu system provides configuration features such as input naming and input trim. Theatre Throughput mode lets the Vanguard serve as the core of a surround-sound system without sacrificing two-channel sound quality. Analog Inputs include three stereo RCA and one stereo balanced XLR. High-quality WBT speaker cable terminals provide a secure, electrically ideal connection.

A key feature for the Digital Vanguard is its digital module, which includes USB, HDMI inputs and output, coax and optical digital inputs; Ethernet music streaming controlled through dedicated iOS and Android apps; and Bluetooth wireless for convenient streaming from phones, tablets and computers.

The Vanguard also offers features that make it perfect for custom installation, such as 3.5mm jacks for IR input and 12-volt trigger input and output, as well as optional rack-mount ears. Additionally, the unit can be controlled with home automation systems or the Krell web server through its Ethernet connection.

Digital Vanguard Specifications

Digital Upgrade Module Adds...
    1) Coaxial and HDMI inputs support PCM up to 24-bit/192kHz. optical input up to 24-bit/96kHz

    2) USB and Network streaming support MP3, AAC, WMA, WAV(PCM), FLAC, ALAC up to 192kHz

    3) Bluetooth streaming supports A2DP, AVRCP, HFP, HSP

Standard Inputs
1 pr. balanced via XLR connectors
3 pr. single-ended via RCA connectors

Outputs
1 pr. speaker outputs via WBT gold-plated binding posts

Control inputs
1 remote IR detector input via 3-conductor 3.5 mm connector
1 12 VDC trigger input via 2-conductor 3.5 mm connector

Control output
1 programmable 12 VDC trigger output (300 mA maximum current) via 2-conductor 3.5 mm connector

Input impedance
Balanced: 95 kO
Single-ended: 47.5 kO

Frequency response
20 Hz to 20 kHz +0, –0.01 dB
<2 Hz to 150 kHz +0, –3 dB

Signal-to-noise ratio
>90 dB, wideband, unweighted, at maximum gain, referred to full power output
>97 dB, “A”-weighted

Gain
48 dB

Input sensitivity
Single-ended or balanced: 160 mV RMS

Total harmonic distortion
<0.015% at 1 kHz, at 200 W, 8 O load
<0.13% at 20 kHz, at 200 W, 8 O load

Output power
200 W RMS per channel at 8 O
400 W RMS per channel at 4 O

Output voltage
113 V peak to peak
40 V RMS

Output current
16 A peak

Slew rate
50 V/µs

Output impedance
<0.066 O at 20 Hz
<0.075 O, 20 Hz to 20 kHz

Damping factor
>121 at 20 Hz, referred to 8 O
>106, 20 Hz to 20 kHz, referred to 8 O

Power consumption
Standby: 12 W
Idle: 70 W
Maximum: 1300 W

Heat output
Standby: 41 BTU/hr
Idle: 239 BTU/hr
Maximum: 4436 BTU/hr

Dimensions
17.1 in W x 4.15 in H x 17.5 in D
434 mm W x 105 mm H x 445 mm D

Weight
Unit only: 39 lb [17.7 kg]
As shipped: 47 lb [21.3 kg]

Sonus faber request this item not be sold online ...for purchase options, Please call 01904 691600 or by email.

Sonus faber Olympica Nova III - Floorstanding Speakers

Olympica Nova is the second generation of the iconic family of 2013, improved in its form and substance, imbued with the timeless values that inspired us in creating the original line.
The result is a new Collection that embraces the most advanced technologies that already enhance our most prestigious creations. The Sonus faber Olympica Nova 3 is capable of creating a sound stage that won’t go unnoticed and will make it unique. Experience the essence of Sonus faber. Olympica Nova III fits perfectly your home and your sound.

The lack of flat and parallel walls improves enclosure performance and maintains the typical asymmetrical Lute shape of first generation Olympica. The asymmetrical shape of the cabinet is an original design concept that allows versatile positioning of the speakers to tune the bass response in any room. Inspired by nature, the lines follow the flow of a circular spiral motion, achieving a more organic cabinet structure. No longer just a functional element added to handle airflow, the reflex duct is now fully integrated into the cabinet, further improving the speed and transparency of sound.

SPECIFICATIONS
System
3 way, full para-aperiodic vented box “Stealth Ultraflex”, floorstanding loudspeaker system.

Loudspeakers
Tweeter: H28 XTR3, Neodymium “cup design” motor system with DAD™, Ø 28 mm
Mid: M15 XTR2-04, CCAW wire on a “eddy current free” voice coil, Ø 150 mm
Woofer: 2 x W18XTR2-08, Ø 180 mm

Crossover
250 Hz - 2.500 Hz

Frequency response
35 Hz – 35.000 Hz

Sensitivity
90 dB SPL (2.83V/1 m)

Nominal Impedence
4 ohm

Suggested Amplifier Power
50 W – 300 W, without clipping

Long Term Input Voltage(IEC 268-5)
22 Vrms

Dimensions (HXWXD)
1104,5 x 376 x 459,8 mm
(43.5 x 14.8 x 18.1 in)

Weight
35 Kg ea – net weight
(77.1 Ib ea – net weight)
