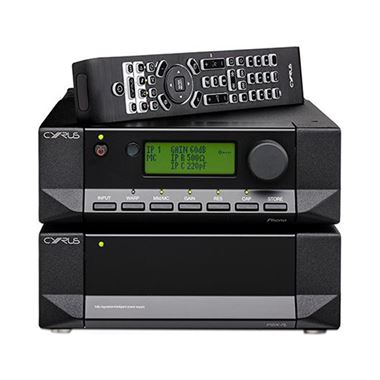

Cyrus Classic Phono and PSX-R2 Power Supply Upgrade

The New... Cyrus Classic PHONO is arguably the most advanced phono pre amplifier available anywhere in the world today.
Designed to exceed the expectations of the most serious vinyl audiophiles, particularly in areas such as outright musical
performance, accurate cartridge matching and flexibility of use.
Cyrus Classic PHONO allows up to four turntables to be permanently connected because many vinyl enthusiasts enjoy multiple
turntables, arms or cartridges for different records. Each of the four inputs can be accurately matched to the exact
specification of the cartridge and the acoustic preference of the user. Adjustment is provided for MC cartridges in gain,
resistance and capacitance. In addition a switchable warp filter is provided to maximise amplifier performance.

Four turntable connections
Four turntables may be permanently connected allowing the
listener to easily switch between turntables, arms or cartridges as
desired.
Each input may be adjusted between; MM or MC, gain, resistance
and capacitance. Settings are conveniently saved to memory for
future reference.

PSX-R2 port
The Cyrus Classic PHONO includes a port for the PSX-R2 power supply.
Power from the PSX-R2 is routed internally to provide a more
stable, low-noise power supply.

Remote controllable
Remote control of all the main adjustment options from the
convenience of the listener’s chair.

Level display
Stereo output level meters working in real time allow clear and
accurate gain adjustment to optimise the headroom available from
your system for each MC cartridge.
Advanced circuit design

The Cyrus Classic PHONO enjoys a high capacity and very low noise
DC power supply that enables the pre amplifier to provide an
extremely wide dynamic range ensuring extended signal levels
long before clipping. Attention to circuit layout and component
placement ensures a very low noise floor to further expand musical
dynamics.

Specifications
No-compromise signal path components
The passive RIAA filtering uses very high performance metallized
polyester capacitors for ultimate accuracy and performance.
Connection for up to four turntables
All inputs compatible with MM and MC cartridges
MC inputs configurable for gain, load and capacitance
Stereo output level meters with peak hold to optimise MC gain
Remote control operation
XLR balanced and RCA outputs
Warp filter to reduce bass excursion on warped records
Ground lift switch to help eliminate ground hum problems
PSX-R upgrade port
Size (H x W x D) 75 x 215 x 365 mm (2.95” x 8.46” x 13.98”)
Weight 4.1kg (9lbs)

Cyrus PSX-R Mk2 Upgrade Power Supply ( or PSX-R2 ) - This intelligent, highly regulated audiophile power supply can be connected to the vast majority of Cyrus products. By providing an extremely smooth and stable DC feed, the PSX-R Mk2 helps the partnered component to achieve its the full potential. This is one of our most popular upgrades and is highly recommended.

The PSX-R Mk2 provides new depth and detail to the sound output of most Cyrus products by separating the processes within the machine. Low noise high gain amplifiers connected in a propriety design filter out any unwanted noise and provide remarkable benefits in sound quality. These improvements in sound quality are sure to make any audiophile smile.

A stable, strong and separated power supply can provide huge sound quality benefits for a hi-fi system.

By powering part of the workings of a Cyrus unit, the PSX-R Mk2 lessens the strain on its internal power supply. This separation of power makes the unit work more efficiently, and creates a stronger and more detailed sound.

A fully regulated 300W DC power supply, the PSX-R Mk2 uses intelligent connectivity which automatically adjusts its output parameters to suit the partnering Cyrus component.

Connection to a partnering Cyrus unit is made through a high quality XLR cable. In all instances this audiophile power supply can be added into the system without any changes to the existing components.
