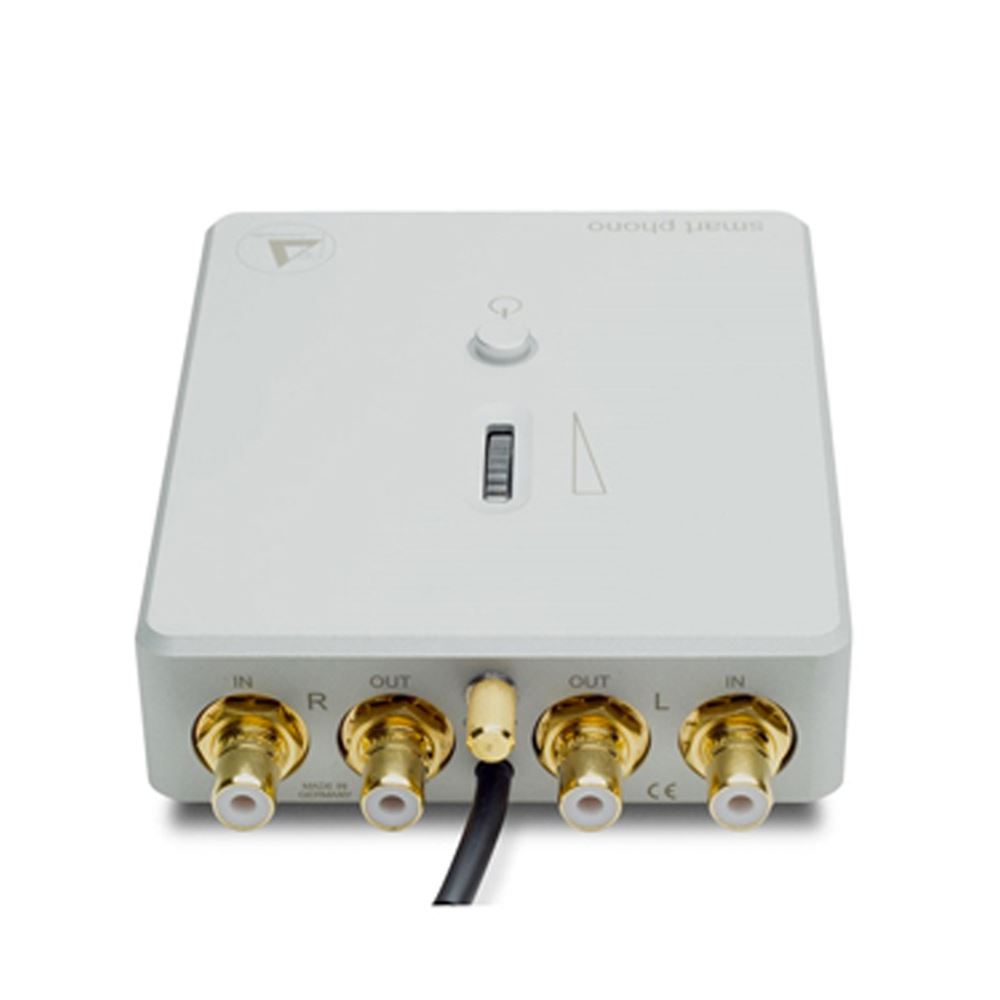

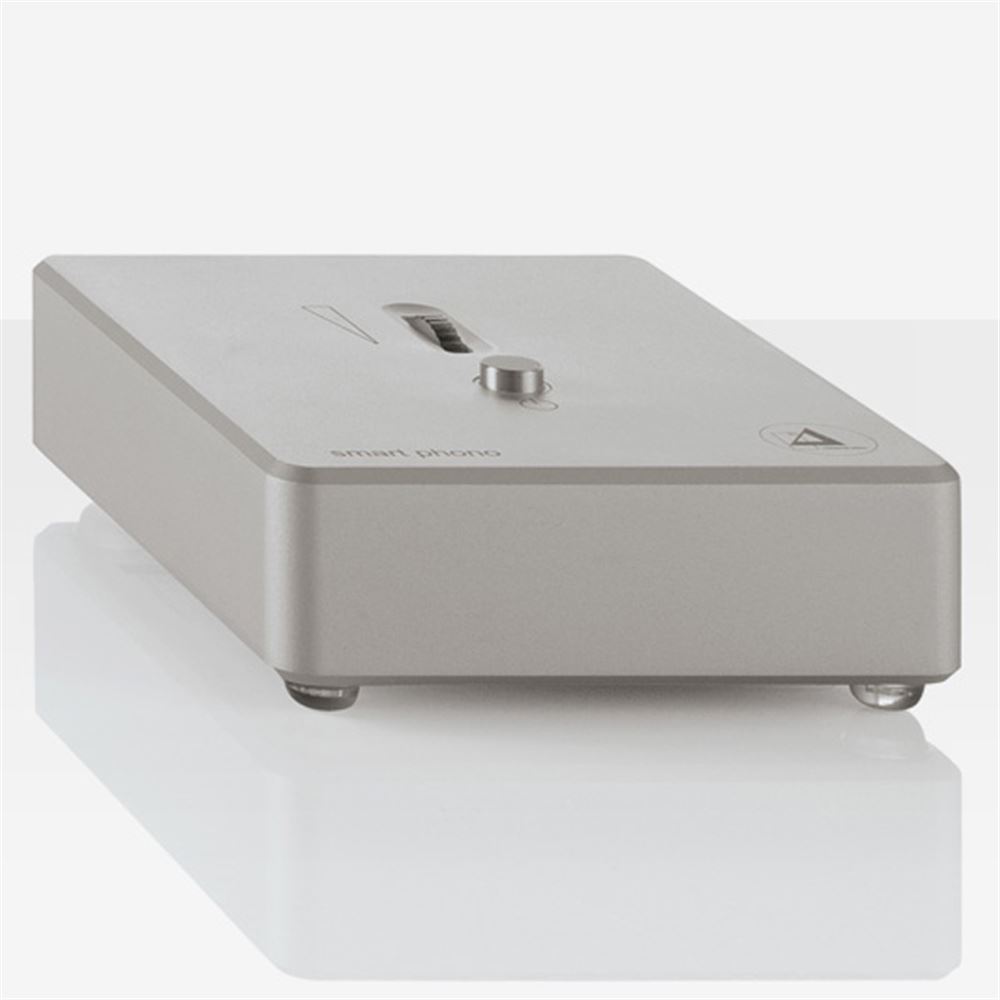

Clearaudio Smart Phono V2 MM/MC Phono Stage. Available with Online Finance and Free Delivery.
A light 620-gram phonostage that seduced the worldwide audio press. The only thing that is 'entry level' about this product is its price.
A minimalist aluminium housing that contains one of the best sounding phonostages in its market. Up to 54 decibels gain at one kilohertz and an extremely linear frequency response deliver unprecedented quality at this price point. For MM and MC cartridges there are two separate circuit designs using SMD technology, which are selected by a slide switch on the underside.
The smart phono headphone V2 version additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
Clearaudio turntables and accessories are hand built to order in Germany
AMPLIFICATION @ 1 KHZ 34 dB (MM-Mode) 54 dB (MC-Mode)
INPUT IMPEDANCE 47 kOhm / 150pF, 250pF, 400pF / MM, 50 OHm, 100 Ohm, 500 Ohm, 1 KOhm, 5kOhm/150pF, 250pF, 400pF / MC

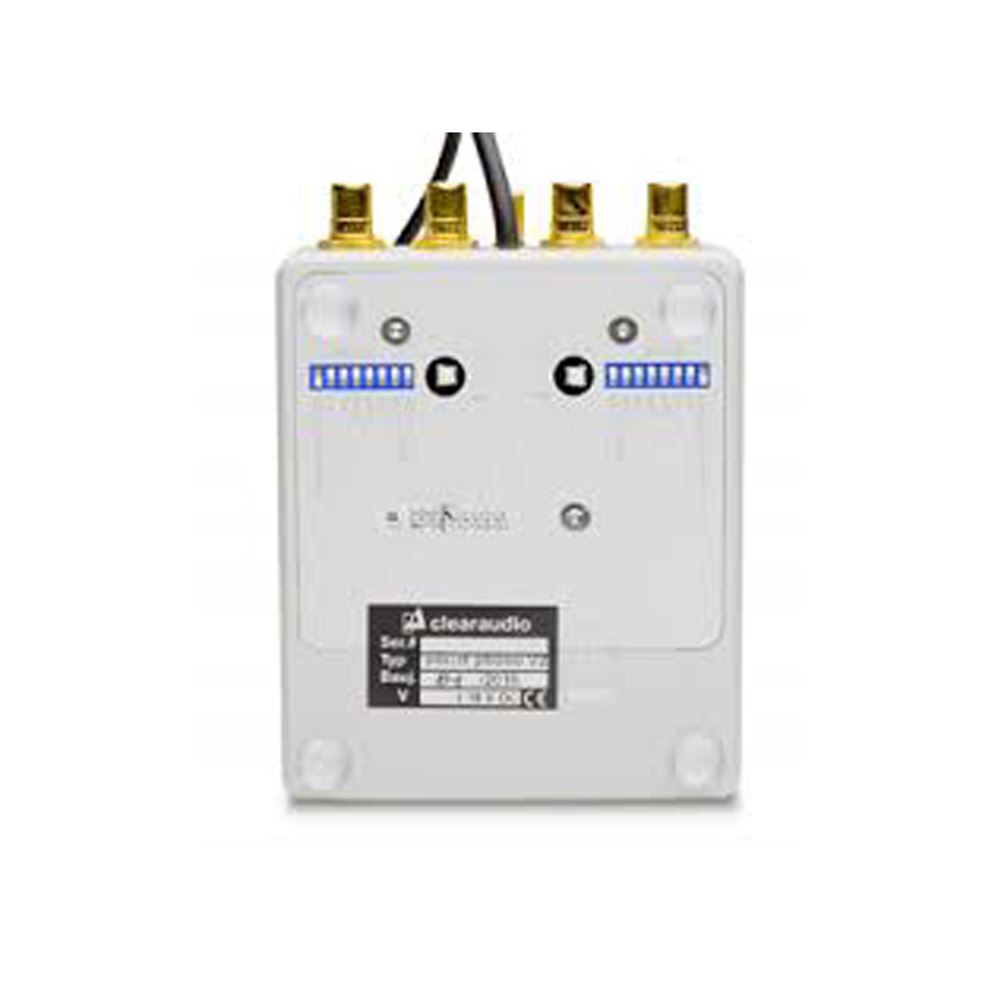

MM / MC INPUT switchable (at bottom)
SUBSONIC FILTER switchable (at bottom)
RIAA delay time: 75 µs / 318 µs / 3180 µs
RIAA ACCURACY ± 0.3 dB @ 10 Hz - 100 kHz
THD < 0,004% MC ("A" @ 1 kHz / -1 dB @ Max)
HEADROOM 18 dB / MC (Gain Control on MAX)
SIGNAL TO NOISE RATIO 72 dB / MC ("A" weighted) 85 dB / MM ("A" weighted)
CHANNEL SEPARATION > 90 dB @ 1 kHz / opposed channel hot-wired
MAX. OUTPUT VOLTAGE 10 V eff. (1 kHz)
POWER CONSUMPTION Max. consumption: 2.7 Watt Consumption in operation: 2.7 Watt Off mode: 0.0 Watt
POWER SUPPLY ± 18 V DC / 300 mA (external power supply)
OUTPUT CONNECTIONS unbalanced (RCA)
WEIGHT Approx. 620 g (Preamp and power supply)
DIMENSIONS (W/D/H in inches) 3.74 x 4.92 x 1.34
DIMENSIONS (W/D/H in mm) 95 x 125 x 34
