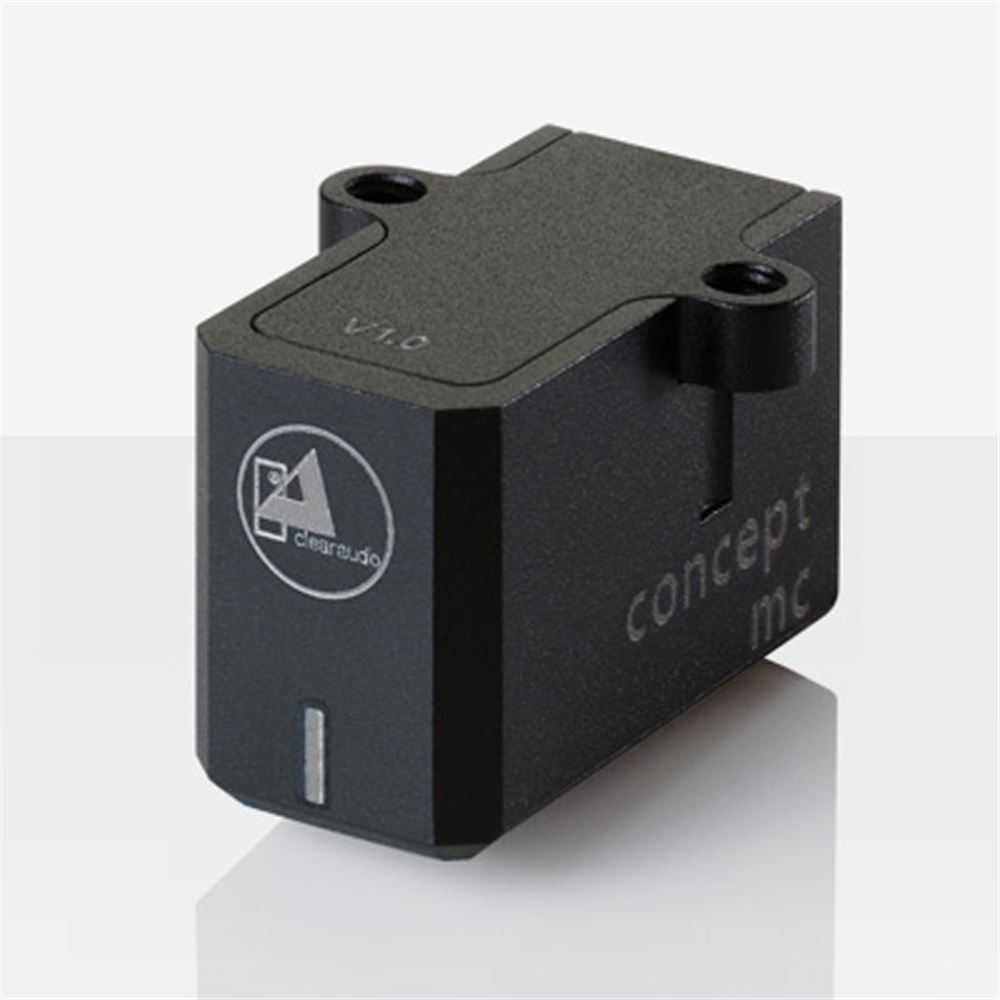

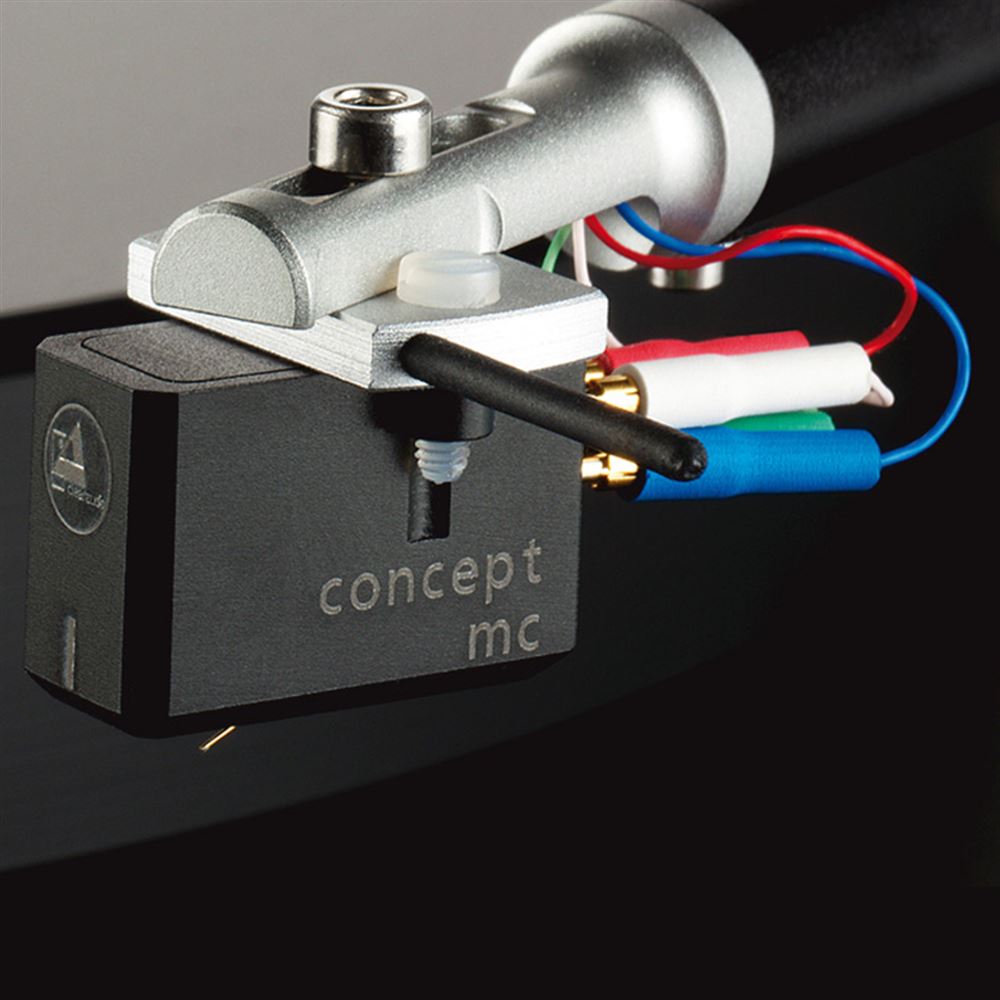

Clearaudio MC Concept Cartridge. Available with Online Finance and Free Delivery.
Here, audiophile explorers discover what the optimisation of magnetic circuits can deliver: this cartridge releases crystal clear sounds and represents nothing less than a revolution in its class.
Equipped with a boron cantilever, the MC Concept has channel matching to within half a decibel, 11 ohms internal impedance and is fitted with a Micro Line stylus – features normally unheard of in this price range. All of which adds up to make this high quality cartridge a bargain for the cost-conscious high-end fan.
TOTAL WEIGHT 8.0 g
FREQUENCY RESPONSE 20 Hz – 40 kHz
OUTPUT VOLTAGE 0.4 mV at 5 cm/s
CROSSTALK > 30 dB
CHANNEL DIFFERENCE < 0.5 dB
TRACKING ABILITY 80 µm
REC. TRACKING FORCE 2.0 gr. (± 0.2 gr.)
CARTRIDGE IMPEDANCE 11 Ohm
CANTILEVER Boron
STYLUS SHAPE Micro Line
COMPLIANCE 9 µ/mN
COIL ASSEMBLY —
COIL MATERIAL OFC – copper
CARTRIDGE BODY Aluminium-Magnesium alloy with ceramic surface layer
