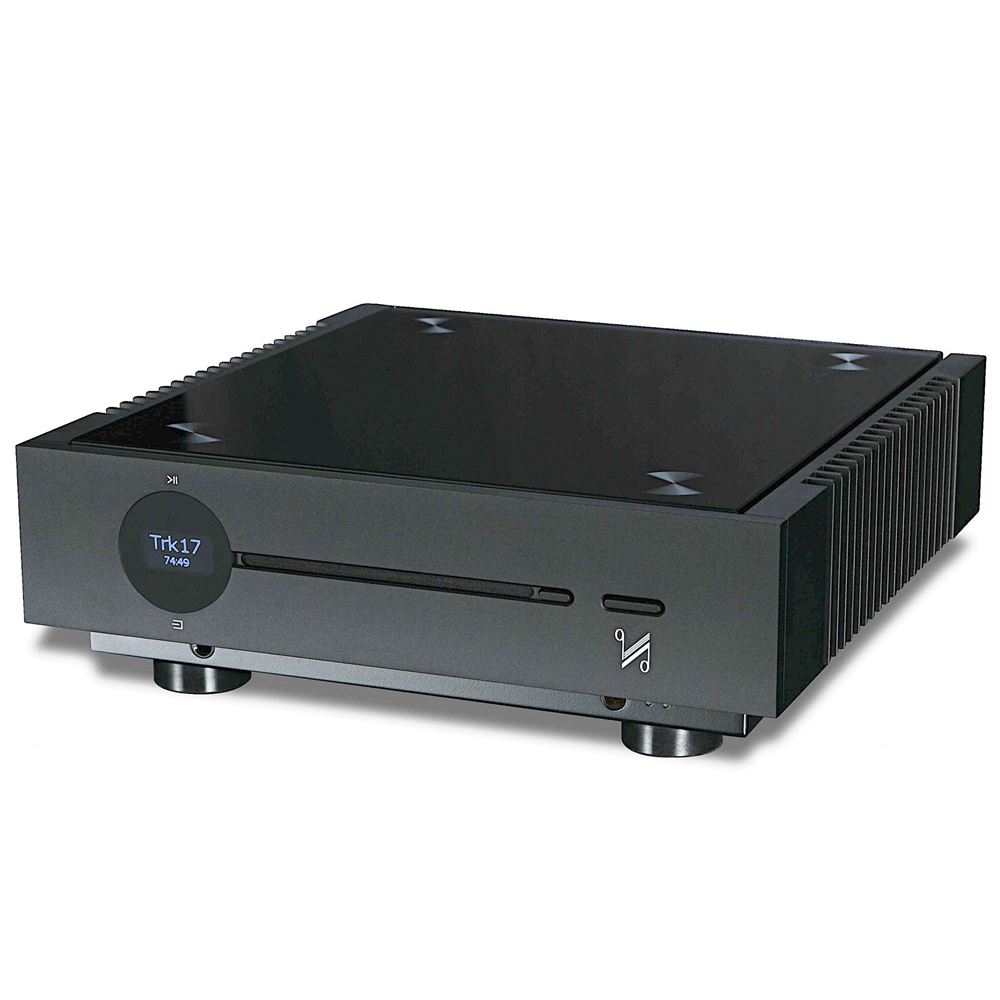

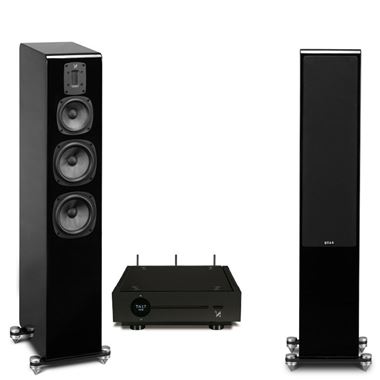

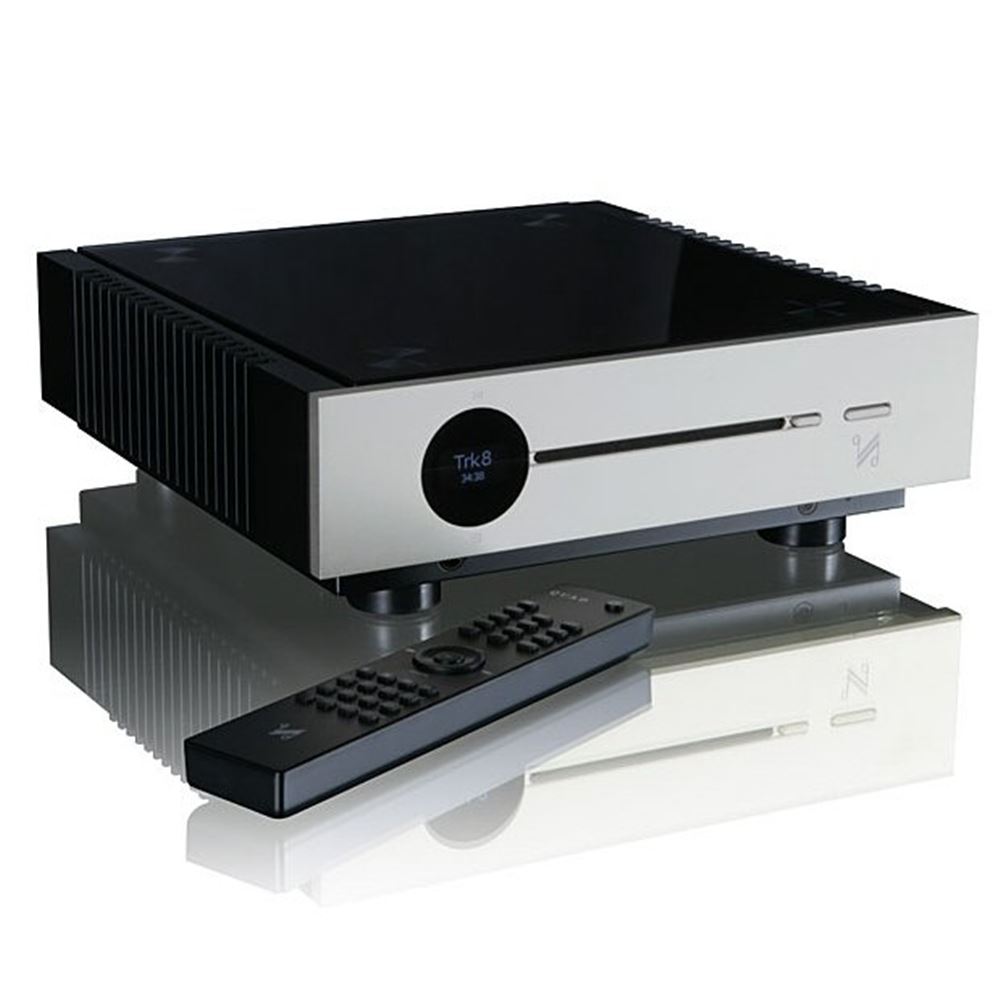

Quad Artera Solus Play Wireless Streaming Integrated Amplifier / DAC / Preamplifier / CD Player with Quad S5 Speakers.
A combination of CD transport, DAC, preamplifier and 75W power amplifier in a single compact chassis, with extensive connectivity options including Bluetooth and full wireless streaming.
The QUAD Artera Solus Play is the latest addition to the best-selling QUAD Artera series. It also heralds the arrival of wireless audio streaming and multi-room technology to the established QUAD Artera portfolio. Based on the recently upgraded and richly specified Artera Solus, the QUAD Artera Solus Play incorporates the acclaimed DTS Play-Fi® platform for high resolution wireless audio streaming. With DTS Play-Fi® Technology, music can be streamed over your wireless network in high-resolution format and can be easily expanded to an ultimate multi-room system if required. You can stream from any source on your wireless network, including smart-phones, tablets or PCs as well as a NAS Drive.
The Artera Solus Play’s Wi-Fi networking is powered by DTS Play-Fi: an app-controlled platform enabling high-quality, whole-home wireless audio, capable of streaming hi-res music up to 24-bit/192kHz and supported by a greater range of established audio brands than any other wireless platform.
General Description CD Player, DAC, Pre-Amp with Integrated amplifier
Audio File Formats D/A Converter ESS ES9018 32bit DAC
USB Input USB B (PC / MAC)
Digital Audio Inputs 2 x Optical TOSlink, 2 x RCA (DIG1, DIG2)
Digital Audio Outputs 1 x Optical TOSlink, 1 x RCA (DIG)
Analogue Inputs 2 x RCA (AUX1, AUX2)
Analogue Outputs 2 x RCA, 2 x Balanced XLR, 6.3mm Headphone Jack
Sample Rate (USB B) 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 384kHz
Rated Power Output 2 x 75W (8 Ohms)
Frequency Response ± 0.5dB (20Hz-20kHz, 1kHz)
Total Harmonic Distortion < 0.003% (@1KHz, 50W/8O, BW=20Hz-20kHz)
Signal to Noise Ration(S/N) 108dB (A-weighted, ref. 75W)
Dimensions 320 x 320 x 105mm
Weight 11.5kg

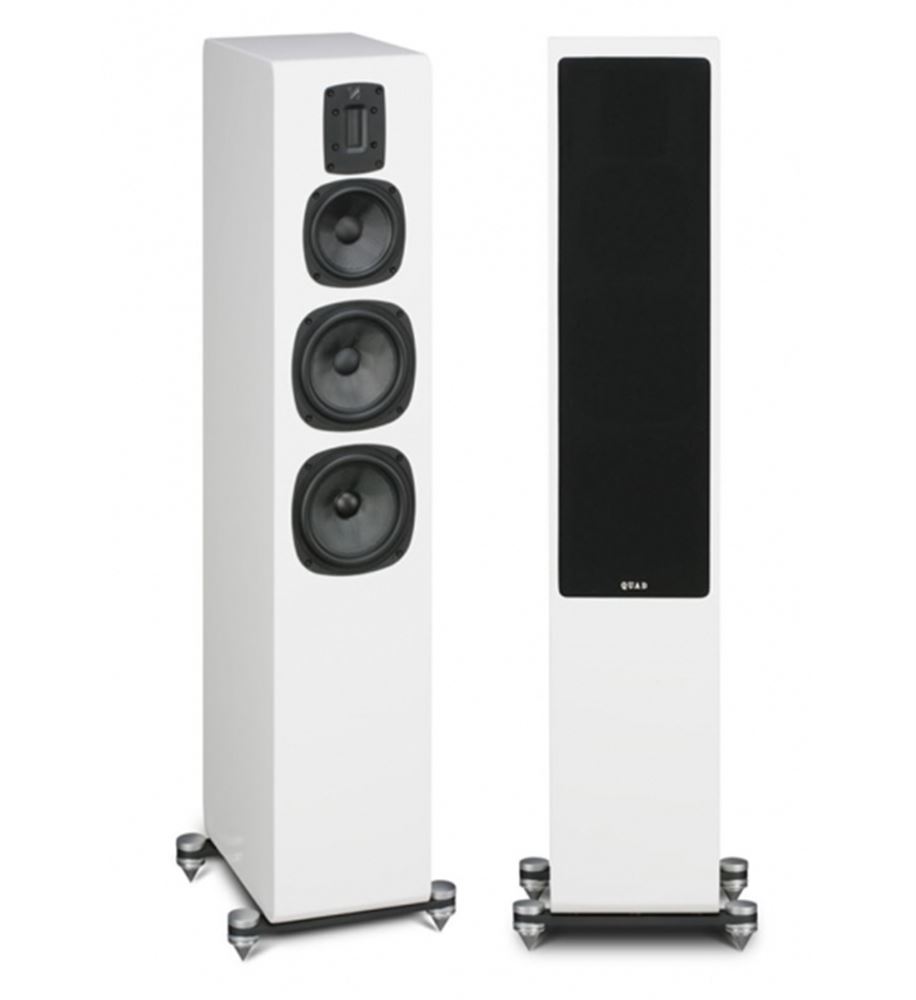

Quad S-5 Series loudspeakers - Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to Quad’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.
S5 Specifications
General description 3-way floorstanding speaker
Enclosure type ABR
Transducer complement 3-way
ABR 165mm x3
Bass driver 165mm Woven Carbon fibre Cone x2
Midrange driver 125mm Woven Carbon fibre Cone
Treble driver 12 x 45 mm True Ribbon
Sensitivity (2.83V @ 1m) 90dB
Recommended amplifier power 25-100W
Peak SPL 105dB
Nominal impedance 6O
Minimum impedance 3.2O
Frequency response (+/-3dB) 42Hz ~ 23kHz
Bass extension (-6dB) 35Hz
Crossover frequency 570Hz & 3.2kHz
Cabinet Volume (in litres) 72.4L
Dimensions (H x W x D) (1070+55) x 205 x (330+30)mm
Weight 21.85 KG
